Kubota F3680

The Kubota F3680 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1499 cc 91.5 ci engine. The listed engine power is Diesel (listed): 36 hp / 26.8 kW. Transmission: infinite forward and reverse. Drive type: 4x4 4WD. Operating weight: 1581 lbs 717 kg.

Engine Power
Diesel (listed): 36 hp / 26.8 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
16.1 gal 60.9 L
Transmission
infinite forward and reverse
Operating Weight
1581 lbs 717 kg

Overview

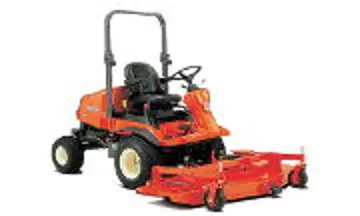

Kubota F3680 tractor photo
2006 - 2013 F80 SeriesFront-mount mower F80 Series Front-mount mower
Production
Manufacturer
Kubota
Front-mount mower
Kubota F3680 Engine
36HP Kubota 1499cc 4-cyl diesel
Fuel tank
16.1 gal 60.9 L
Engine details ...
Kubota F3680 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive
4x4 4WD
Differential lock
standard
Power steering
Wet disc brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Front PTO
independent
Clutch
hydraulic wet disc
Front PTO Type
2545
Dimensions & Tires
Wheelbase
52 inches 132 cm
Weight
1581 lbs 717 kg
Front tire
24x12-12
Rear tire
18x9.5-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
40
Charging volts
12
Battery volts
12

Engine

Engine Detail — 1499 cc / 91.5 ci Diesel

Manufacturer
Kubota V1505
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
1499 cc 91.5 ci
Bore/Stroke
3.071x3.087 inches 78 x 78 mm
Power
36 hp 26.8 kW
Air cleaner
dual elment dry
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
F3680  hydrostatic speeds

Dimensions

Kubota F3680 Tires
Lawn/turf front
24x12-12
Lawn/turf rear
18x9.5-8
Dimensions
Wheelbase
52 inches 132 cm
Length
94.8 inches 240 cm
Width
56.4 inches 143 cm
Height (ROPS)
79.4 inches 201 cm
Weight
1581 lbs 717 kg
Ground clearance
7.4 inches 18 cm
Front tread
41.8 inches 106 cm
Rear tread
41.1 inches 104 cm

Attachments

Attachment overview
60" front-mount mower deck
72" front-mount mower deck

Photos

Kubota F3680 tractor photo

Kubota F3680 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota F3680 based on its 36 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota F3680.

Estimated Continuous Field Runtime: 8.6 hrs

Approximately 8.6 hours of continuous field operation at ~75% rated power on a full tank (16.1 gal / 60.9 L).

Estimated 75% Load Fuel Burn~1.9 gal/hr (7.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota F3680 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota F3680.

Converted Equivalents:

Horsepower (HP)36 hp
Kilowatts (kW)26.8 kW
Metric Horsepower (PS / CV)36.5 PS

Direct Competitor Comparison

Compare Kubota F3680 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota F3680

Engine Power:Diesel (listed): 36 hp / 26.8 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1532

Engine Power:32.5
Production Years:2007 - 2014
DeereMarket Competitor

Deere 3320

Engine Power:32.5
Production Years:2005 - 2013
KubotaMarket Competitor

Kubota GL321

Engine Power:32.6
Production Years:1996 - 2001
MontanaMarket Competitor

Montana 3440

Engine Power:32.5
Production Years:2004 - 2009
