Kubota F3060

The Kubota F3060 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1335 cc 81.5 ci engine. The listed engine power is Diesel (gross): 30 hp / 22.4 kW. Transmission: infinite forward and reverse (2-range). Drive type: 4x4 4WD. Operating weight: 1340 lbs 607 kg.

Overview

	1997 - 2005 F60 SeriesFront-mount mower F60 Series Front-mount mower

Production
Manufacturer	Kubota
Front-mount mower

Kubota F3060 Engine
30HP Kubota 1335cc 4-cyl diesel
Fuel tank	10.5 gal 39.7 L
Engine details ...

Kubota F3060 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x4 4WD
Power steering
Wet disc brakes
Two-post ROPS

Power Take-off (PTO)
Front PTO	independent
Clutch	hydraulic wet disc
Front PTO Type	Kubota 10-tooth

Dimensions & Tires
Wheelbase	51.2 inches 130 cm
Weight	1340 lbs 607 kg
Front tire	23x10.50-12
Rear tire	18x7.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	70

References
Diesel Front Mower F2260/F2560E/F2560/F3060 published in 1996, by Kubota
F60 Series published in 1996, by Kubota
Operator's Manual F2260, F2560, F2560E, F3060, F3560 (K3513-6291-2) published in 1996
Workshop Manual F2260, F2560(E), F3060, F3560 (9Y011-11903) published in 1996
1999 Products published by Kubota

Engine

Engine Detail — 1335 cc / 81.5 ci Diesel

Manufacturer	Kubota V1305
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled horizontal-shaft inline
Displacement	1335 cc 81.5 ci
Bore/Stroke	2.99x2.90 inches 76 x 74 mm
Power (gross)	30 hp 22.4 kW
Fuel system	indirect injection
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Kubota F3060 Tires
Lawn/turf front	23x10.50-12
Lawn/turf rear	18x7.00-8

Dimensions
Wheelbase	51.2 inches 130 cm
Length	91.9 inches 233 cm
Width	44.9 inches 114 cm
Height (ROPS)	75.2 inches 191 cm
Weight	1340 lbs 607 kg
Ground clearance	6.9 inches 17 cm
Front tread	34.4 inches 87 cm
Rear tread	34.25 inches 86 cm

Attachments

Attachment overview
60" front-mount mower deck
72" front-mount mower deck

Photos

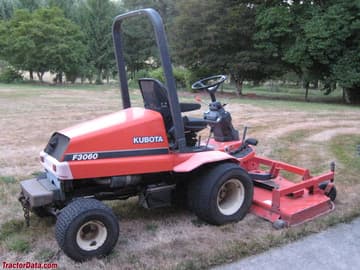

Kubota F3060
