Kubota T1400

The Kubota T1400 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (listed): 13.5 hp / 10.1 kW. Transmission: infinite forward and reverse. Operating weight: 507 lbs 229 kg.

Engine Power
Gasoline (listed): 13.5 hp / 10.1 kW
Fuel & Capacities
2.2 gal 8.3 L
Transmission
infinite forward and reverse
Operating Weight
507 lbs 229 kg

Overview

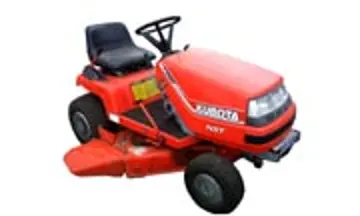

Kubota T1400 tractor photo
1987 - 1996 T SeriesLawn tractor T Series Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Kubota T1400 Engine
13.5HP Kubota 388cc 1-cyl gasoline
Fuel tank
2.2 gal 8.3 L
Engine details ...
Kubota T1400 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTO
independent
Dimensions & Tires
Wheelbase
46.9 inches 119 cm
Weight
507 lbs 229 kg
Front tire
14x5.00-6
Rear tire
18x8.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
T1400 references literature
Product Catalog published in 1990, by Kubota

Engine

Engine Detail — 388 cc / 23.7 ci Gasoline

Manufacturer
Kubota
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
388 cc 23.7 ci
Power
13.5 hp 10.1 kW
Rated RPM
3600
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
T1400  belt-driven hydrostatic speeds

Dimensions

Kubota T1400 Tires
Lawn/turf front
14x5.00-6
Lawn/turf rear
18x8.50-8
Dimensions
Wheelbase
46.9 inches 119 cm
Length
67.1 inches 170 cm
Width
52 inches 132 cm
Height
40.9 inches 103 cm
Weight
507 lbs 229 kg
Front tread
25.6 inches 65 cm
Rear tread
26 inches 66 cm

Attachments

Attachment overview
40" mid-mount mower deck
Snowblower
Blade
40" Mower deck
Type
mid-mount Kubota RC40LT
2-blade
Cutting width
40 inches 101 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

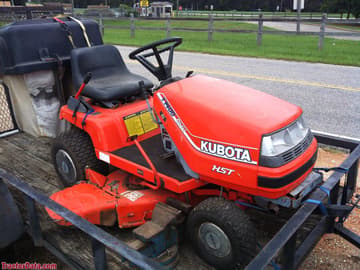

Kubota T1400

Kubota T1400

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T1400.

Estimated Continuous Field Runtime: 3.1 hrs

Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota T1400 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T1400.

Converted Equivalents:

Horsepower (HP)13.5 hp
Kilowatts (kW)10.1 kW
Metric Horsepower (PS / CV)13.7 PS
