Kubota T1600

The Kubota T1600 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 478 cc 29.2 ci engine. The listed engine power is Diesel (listed): 13.5 hp / 10.1 kW. Transmission: infinite forward and reverse. Drive type: shaft. Operating weight: 661 lbs 299 kg.

Overview

	1990 - 1996 T SeriesLawn tractor T Series Lawn tractor

Production
Manufacturer	Kubota
Lawn tractor

Kubota T1600 Engine
13.5HP Kubota 478cc 2-cyl diesel
Fuel tank	2.6 gal 9.8 L
Engine details ...

Kubota T1600 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	47.2 inches 119 cm
Weight	661 lbs 299 kg
Front tire	15x6.00-6
Rear tire	20x10.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
T1600H published in 1990, by Kubota
Product Catalog published in 1990, by Kubota

Engine

Engine Detail — 478 cc / 29.2 ci Diesel

Manufacturer	Kubota
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	478 cc 29.2 ci
Power	13.5 hp 10.1 kW
Rated RPM	3200
Starter volts	12

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota T1600 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x10.00-8

Dimensions
Wheelbase	47.2 inches 119 cm
Length	67.9 inches 172 cm
Width	43.3 inches 109 cm
Height	56.3 inches 143 cm
Weight	661 lbs 299 kg
Front tread	28.3 inches 71 cm
Rear tread	27.2 inches 69 cm

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Kubota RC44LT
	3-blade
Cutting width	44 inches 111 cm
Drive	shaft
Cut height	1 to 4 inch 2 to 10 cm

Photos

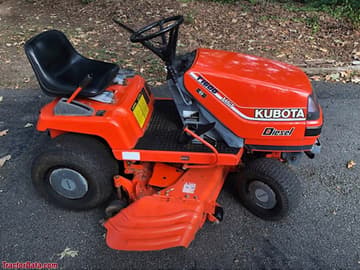

Kubota T1600
