Kubota T1460

The Kubota T1460 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 422 cc 25.8 ci engine. The listed engine power is Gasoline (listed): 12.5 hp / 9.3 kW. Transmission: infinite forward and reverse. Operating weight: 528 lbs 239 kg.

Engine Power
Gasoline (listed): 12.5 hp / 9.3 kW
Fuel & Capacities
Gasoline
Transmission
infinite forward and reverse
Operating Weight
528 lbs 239 kg

Overview

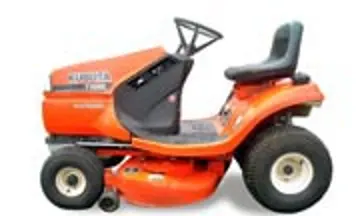

Kubota T1460 tractor photo
1997 - 2001 T SeriesLawn tractor T Series Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Kubota T1460 Engine
12.5HP Kawasaki 422cc 1-cyl gasoline
Engine details ...
Kubota T1460 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Open operator station.
Dimensions & Tires
Weight
528 lbs 239 kg
Front tire
15x6.00-6
Rear tire
18x8.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
T1460 references literature
1999 Products published by Kubota

Engine

Engine Detail — 422 cc / 25.8 ci Gasoline

Manufacturer
Kawasaki FC420V
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
422 cc 25.8 ci
Bore/Stroke
3.50x2.68 inches 89 x 68 mm
Power
12.5 hp 9.3 kW
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
T1460  belt-driven hydrostatic speeds

Dimensions

Kubota T1460 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
18x8.50-8
20x10.00-8
Dimensions
Length
67.7 inches 171 cm
Width
52 inches (with mower) 132 cm
Weight
528 lbs 239 kg

Attachments

Attachment overview
40" mid-mount mower deck
Snowblower
Blade
40" Mower deck
Type
mid-mount Kubota RCK40LT
Cutting width
40 inches 101 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

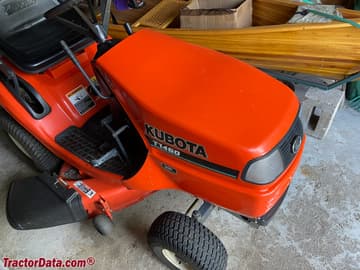

Kubota T1460

Kubota T1460

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T1460.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota T1460 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T1460.

Converted Equivalents:

Horsepower (HP)12.5 hp
Kilowatts (kW)9.3 kW
Metric Horsepower (PS / CV)12.7 PS
