Kubota G4200

The Kubota G4200 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 424 cc 25.9 ci engine. The listed engine power is Diesel (gross): 12 hp / 8.9 kW; Diesel (listed): 0.94 hp / 0.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 683.5 to 694.5 pounds.

Overview

	1984 - 1990 G SeriesGarden tractor G Series Garden tractor

Production
Manufacturer	Kubota
Garden tractor
Original price	$3,950 (1984 gear )
	$4,350 (184 hydro )

Kubota G4200 Engine
12HP Kubota 424cc 2-cyl diesel
Fuel tank	2.1 gal 7.9 L
Engine details ...

Mechanical
Two-wheel drive
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	2000
Front PTO	independent
Clutch	manual idler pulley
Front PTO Type	1-inch

Dimensions & Tires
Wheelbase	47.2 inches 119 cm
Weight	683.5 to 694.5 pounds
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	35

References
Diesel Lawn and Garden Tractors published in 1984, by Kubota*
*Publication contains known errors.

Engine

Engine Detail — 424 cc / 25.9 ci Diesel

Manufacturer	Kubota Z430
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	424 cc 25.9 ci
Bore/Stroke	2.60x2.45 inches 66 x 62 mm
Power (gross)	12 hp 8.9 kW
Pre-heating	glow plugs
Rated RPM	3200
Starter volts	12
Starter power	0.94 hp 0.7 kW
Oil capacity	2.1 qts 2.0 L
Coolant capacity	2.0 qts 1.9 L

Transmission

Transmission options
hydrostatic
3-speed gear

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.5 qts 7.1 L

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Clutch	double dry disc
Oil capacity	8.5 qts 8.0 L

Dimensions

Kubota G4200 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	47.2 inches 119 cm
Length	70.9 inches 180 cm
Width	37.8 inches*Minimum width 96 cm
Height	45.3 inches 115 cm
Ground clearance	6.7 inches 17 cm
Front tread	29.1 inches 73 cm
Rear tread	27.4/29.7 inches 69/75 cm

Kubota G4200 Weight
Gear	683.5 lbs 310 kg
Hydro	694.5 lbs 315 kg
Max capacity	1540 lbs 698 kg
Max front axle	660 lbs 299 kg
Max rear axle	1210 lbs 548 kg

Attachments

Attachment overview
40" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

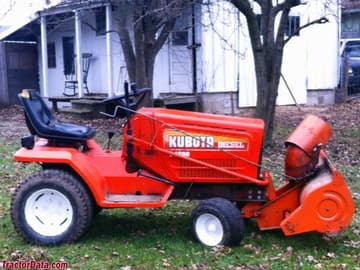

Kubota G4200 with G2500 snow blower.

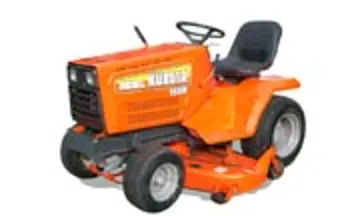

Kubota G4200.
