Kubota TG1860G

The Kubota TG1860G is a tractor produced by Kubota Lawn Tractors. It is equipped with a 584 cc 35.68 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 859 lbs 389 kg.

Overview

	1998 - 2003 TG SeriesLawn tractor TG Series Lawn tractor

Production
Manufacturer	Kubota
Lawn tractor

Variants
TG1860	diesel
TG1860G	gasoline

Kubota TG1860G Engine
18HP Kawasaki 584cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Kubota TG1860G Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	power
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Weight	859 lbs 389 kg
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
1999 Products published by Kubota

Engine

Engine Detail — 584 cc / 35.68 ci Gasoline

Manufacturer	Kawasaki FD590V
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled vertical-shaft V-Twin
Displacement	584 cc 35.68 ci
Bore/Stroke	2.91x2.68 inches 74 x 68 mm
Power	18 hp 13.4 kW
Starter volts	12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota TG1860G Tires

Dimensions
Length	75.8 inches 192 cm
Width	40.2 inches 102 cm
Weight	859 lbs 389 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade

Photos

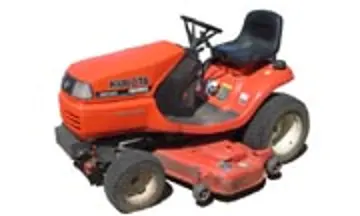

Kubota TG1860G
