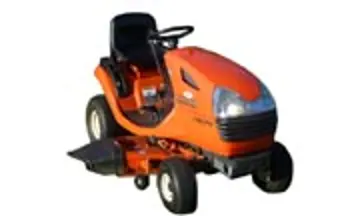

Kubota T1670
The Kubota T1670 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 422 cc 25.8 ci engine. The listed engine power is Gasoline (listed): 15 hp / 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 559 lbs 253 kg.
Overview
![]() | 2002 - 2007
T SeriesLawn tractor
T Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Lawn tractor | |
Kubota T1670 Engine | |
|---|---|
15HP Kohler 422cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ... | |
Kubota T1670 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual, sector and pinion |
Disc brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Weight | 559 lbs
253 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x10.00-8 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 422 cc / 25.8 ci Gasoline
Manufacturer | Kohler CV15 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 422 cc
25.8 ci |
Power | 15 hp
11.2 kW |
Starter volts | 12 |

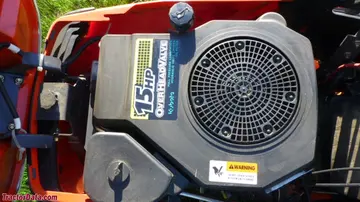

Kubota T1670 Engine | |
|---|---|
![]() | |
Image courtesy of Kevin |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
Kubota T1670 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x10.00-8 |
Dimensions | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Length | 67.8 inches
172 cm |
Width | 35.5 inches
90 cm |
Height | 43.6 inches
110 cm |
Weight | 559 lbs
253 kg |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade |
44" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK44LTB |
Cutting width | 44 inches
111 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota T1670 based on its 15 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T1670.
Estimated Continuous Field Runtime: 5.1 hrs
Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota T1670 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T1670.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota T1670 against same-era industry alternatives in the same horsepower class.
Kubota T1670
International Harvester D-214
