Kubota G1800

The Kubota G1800 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 656 cc 40.03 ci engine. The listed engine power is Diesel (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 706 to 750 pounds.

Engine Power
Diesel (gross): 16 hp / 11.9 kW
Fuel & Capacities
5 gal 18.9 L
Transmission
infinite forward and reverse
Operating Weight
706 to 750 pounds

Overview

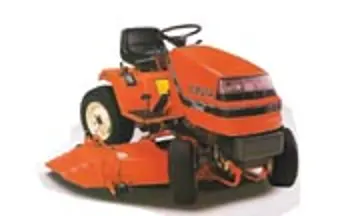

Kubota G1800 tractor photo
1989 - 2000 G SeriesGarden tractor G Series Garden tractor
Production
Manufacturer
Kubota
Garden tractor
Variants
G1800
two-wheel steer
G1800S
four-wheel steer
Kubota G1800 Engine
16HP Kubota 656cc 3-cyl diesel
Fuel tank
5 gal 18.9 L
Engine details ...
Kubota G1800 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Internal expanding shoe brakes
Open operator station.
Tractor hitch
Rear Type
0 OptOptional
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
2000
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
50 inches 127 cm
Weight
706 to 750 pounds
Front tire
16x6.5-8000
Rear tire
23x10.5-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
12.5
Battery volts
12
Battery AH
45
References
G1800 references literature
Diesel Garden Tractor G1700H/G1800HS published in 1999, by Kubota
Product Catalog published in 1990, by Kubota
1999 Products published by Kubota

Engine

Engine Detail — 656 cc / 40.03 ci Diesel

Manufacturer
Kubota D662
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
656 cc 40.03 ci
Power (gross)
16 hp 11.9 kW
Fuel system
indirect injection
Air cleaner
paper element
Starter volts
12

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and reverse
G1800  shaft-driven hydrostatic speeds

Dimensions

Kubota G1800 Tires
Lawn/turf front
16x6.5-8000
Lawn/turf rear
23x10.5-12
23x8.5-12
Dimensions
Wheelbase
50 inches 127 cm
Length
73.4 inches 186 cm
Width
40.7 inches 103 cm
Height
45.7 inches 116 cm
G1800 Weight
706 lbs 320 kg
G1800S Weight
750 lbs 340 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

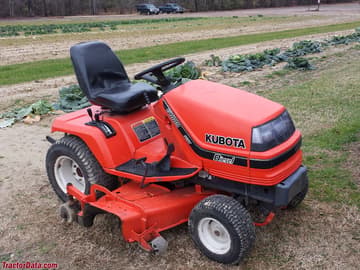

Kubota G1800

Kubota G1800

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota G1800 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota G1800.

Estimated Continuous Field Runtime: 6 hrs

Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota G1800 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota G1800.

Converted Equivalents:

Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
