Kubota ZD1511LF

The Kubota ZD1511LF is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1498 cc 91.4 ci engine. The listed engine power is Diesel (gross): 30.8 hp / 23.0 kW. Transmission: infinite forward and reverse. Operating weight: 2028 lbs 919 kg.

Engine Power
Diesel (gross): 30.8 hp / 23.0 kW
Fuel & Capacities
13 gal 49.2 L
Transmission
infinite forward and reverse
Operating Weight
2028 lbs 919 kg

Overview

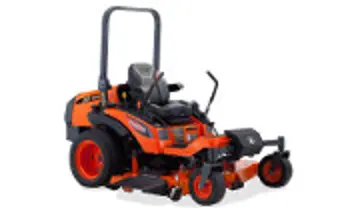

Kubota ZD1511LF tractor photo
2017 - Zero-turn mower
2017 -
Zero-turn mower
2017 -
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $23,399 in 2021
Kubota ZD1511LF Engine
30.8HP Kubota 1498cc 4-cyl diesel
Fuel tank
13 gal 49.2 L
Engine details ...
Kubota ZD1511LF Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Disc brakes
Two-post folding ROPS.
Dimensions & Tires
Wheelbase
61.4 inches 155 cm
Weight
2028 lbs 919 kg
Front tire
15x6.5-8
Rear tire
26x12.0-16
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
60
Battery CCA
670
Battery volts
12

Engine

Kubota ZD1511LF tractor photo
2017 - Zero-turn mower
2017 -
Zero-turn mower
2017 -
Zero-turn mower

Engine Detail — 1498 cc / 91.4 ci Diesel

Manufacturer
Kubota V1505
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
1498 cc 91.4 ci
Bore/Stroke
3.071x3.087 inches 78 x 78 mm
Power (gross)
30.8 hp 23.0 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Kubota ZD1511LF tractor photo
2017 - Zero-turn mower
2017 -
Zero-turn mower
2017 -
Zero-turn mower

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
ZD1511LF  hydrostatic speeds

Dimensions

Kubota ZD1511LF tractor photo
2017 - Zero-turn mower
2017 -
Zero-turn mower
2017 -
Zero-turn mower
Kubota ZD1511LF Tires
Lawn/turf front
15x6.5-8
Lawn/turf rear
26x12.0-16
Dimensions
Wheelbase
61.4 inches 155 cm
Length
104.7 inches 265 cm
Width
60.6 inches 153 cm
Height (ROPS)
78.7 inches 199 cm
Height (Folded ROPS)
64.6 inches 164 cm
Weight
2028 lbs 919 kg

Attachments

Kubota ZD1511LF tractor photo
2017 - Zero-turn mower
2017 -
Zero-turn mower
2017 -
Zero-turn mower

Photos

Kubota ZD1511LF tractor photo

Kubota ZD1511LF tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota ZD1511LF based on its 30.8 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZD1511LF.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (13 gal / 49.2 L).

Estimated 75% Load Fuel Burn~1.6 gal/hr (6.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota ZD1511LF Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZD1511LF.

Converted Equivalents:

Horsepower (HP)30.8 hp
Kilowatts (kW)23 kW
Metric Horsepower (PS / CV)31.2 PS
