Kubota ZD1211L

The Kubota ZD1211L is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1123 cc 68.53 ci engine. The listed engine power is Diesel (gross): 24.8 hp / 18.5 kW. Transmission: infinite forward and reverse. Operating weight: 1775 lbs 805 kg.

Engine Power
Diesel (gross): 24.8 hp / 18.5 kW
Fuel & Capacities
12.9 gal 48.8 L
Transmission
infinite forward and reverse
Operating Weight
1775 lbs 805 kg

Overview

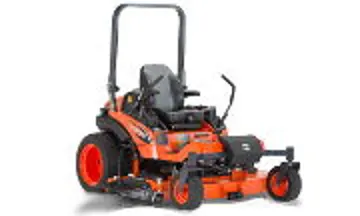

Kubota ZD1211L tractor photo
2016 - ZD1200 SeriesZero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Kubota ZD1211L Engine
24.8HP Kubota 1123cc 3-cyl diesel
Fuel tank
12.9 gal 48.8 L
Engine details ...
Kubota ZD1211L Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
hydraulic wet disc
Dimensions & Tires
Wheelbase
56.7 inches 144 cm
Weight
1775 lbs 805 kg
Front tire
15x6.0-6
Rear tire
26x12.0-16
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
14
Charging volts
14
Battery CCA
430
Battery volts
12
References
ZD1211L references literature
ZD Series published in 2015, by Kubota
ZD Series published in 2019, by Kubota

Engine

Kubota ZD1211L tractor photo
2016 - ZD1200 SeriesZero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
2016 -
ZD1200 Series
Zero-turn mower

Engine Detail — 1123 cc / 68.53 ci Diesel

Manufacturer
Kubota D1105
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
1123 cc 68.53 ci
Bore/Stroke
3.071x3.087 inches 78 x 78 mm
Power (gross)
24.8 hp 18.5 kW
Rated RPM
3000
Starter
electric
Starter volts
12

Transmission

Kubota ZD1211L tractor photo
2016 - ZD1200 SeriesZero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
2016 -
ZD1200 Series
Zero-turn mower

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
ZD1211L  hydrostatic speeds

Dimensions

Kubota ZD1211L tractor photo
2016 - ZD1200 SeriesZero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
Kubota ZD1211L Tires
Lawn/turf front
15x6.0-6
Lawn/turf rear
26x12.0-16
Dimensions
Wheelbase
56.7 inches 144 cm
Length
93.7 inches 237 cm
Width
60.6 inches 153 cm
Height (ROPS)
78.7 inches 199 cm
64.6 inches*With ROPS folded. 164 cm
Weight
1775 lbs 805 kg
Front tread
41.9 inches 106 cm
Rear tread
47.6 inches 120 cm

Attachments

Kubota ZD1211L tractor photo
2016 - ZD1200 SeriesZero-turn mower
2016 -
ZD1200 Series
Zero-turn mower
2016 -
ZD1200 Series
Zero-turn mower

Photos

Kubota ZD1211L tractor photo

Kubota ZD1211L tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota ZD1211L based on its 24.8 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZD1211L.

Estimated Continuous Field Runtime: 10 hrs

Approximately 10 hours of continuous field operation at ~75% rated power on a full tank (12.9 gal / 48.8 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota ZD1211L Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZD1211L.

Converted Equivalents:

Horsepower (HP)24.8 hp
Kilowatts (kW)18.5 kW
Metric Horsepower (PS / CV)25.1 PS

Direct Competitor Comparison

Compare Kubota ZD1211L against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota ZD1211L

Engine Power:Diesel (gross): 24.8 hp / 18.5 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 100

Engine Power:22.4
Production Years:1954 - 1956
Massey FergusonMarket Competitor

Massey Ferguson 1523

Engine Power:22.5
Production Years:2005 - 2010
KubotaMarket Competitor

Kubota B9200

Engine Power:22.5
Production Years:1986 - 1990
FarmallMarket Competitor

Farmall 100

Engine Power:22.4
Production Years:1954 - 1956
