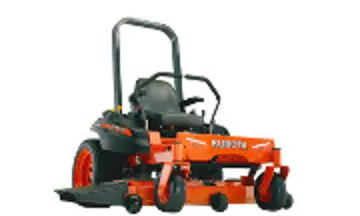

Kubota Z125E
The Kubota Z125E is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Hydro-Gear ZT3100. Operating weight: 749 lbs 339 kg.
Overview
![]() | 2014 - 2019
Z100 SeriesZero-turn mower
Z100 Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Original price was $5,859 in 2015 | |
Kubota Z125E Engine | |
|---|---|
25HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 4.3 gal
16.3 L |
Engine details ... | |
Kubota Z125E Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential power |
Two-post fixed ROPS. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric dry disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 749 lbs
339 kg |
Front tire | 11x4-5 |
Rear tire | 22x10-14 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Z100 Series published in 2014, by Kubota |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.2 ci |
Power (gross) | 25 hp
18.6 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Hydro-Gear ZT3100
Transmission | Hydro-Gear ZT3100 |
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.4 qts
2.3 L |
![]() | |
Dimensions
Kubota Z125E Tires | |
|---|---|
Lawn/turf front | 11x4-5 |
Lawn/turf rear | 22x10-14 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 76.4 inches
194 cm |
Width | 47.5 inches
120 cm |
Height (ROPS) | 65 inches
165 cm |
Weight | 749 lbs
339 kg |
Front tread | 31.3 inches
79 cm |
Rear tread | 37.6 inches
95 cm |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK54P-127ZA |
3-blade | |
Cutting width | 54 inches
137 cm |
Overall width | 67.3 inches
170 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota Z125E based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z125E.
Estimated Continuous Field Runtime: 3.3 hrs
Approximately 3.3 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota Z125E Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z125E.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota Z125E against same-era industry alternatives in the same horsepower class.
