Kubota ZD1211
The Kubota ZD1211 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1123 cc 68.53 ci engine. The listed engine power is Diesel (gross): 24.8 hp / 18.5 kW. Transmission: infinite forward and reverse. Operating weight: 1687 lbs 765 kg.
Engine Power
Diesel (gross): 24.8 hp / 18.5 kW
Fuel & Capacities
12.9 gal
48.8 L
Transmission
infinite forward and reverse
Operating Weight
1687 lbs
765 kg
Overview
 | 2016 -
ZD1200 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1200 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1200 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Kubota ZD1211 Engine | |
|---|---|
24.8HP Kubota 1123cc 3-cyl diesel | |
Fuel tank | 12.9 gal
48.8 L |
Engine details ...  | |
Kubota ZD1211 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | hydraulic wet disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 56.7 inches
144 cm |
Weight | 1687 lbs
765 kg |
Front tire | 15x6.0-6 |
Rear tire | 26x12.0-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 14 |
Charging volts | 14 |
Battery CCA | 430 |
Battery volts | 12 |
References | |
|---|---|
 | |
ZD Series published in 2015, by Kubota | |
ZD Series published in 2019, by Kubota |
Engine
| 2016 -
ZD1200 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1200 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1200 Series | |
Zero-turn mower |
Engine Detail — 1123 cc / 68.53 ci Diesel
Manufacturer | Kubota D1105 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 1123 cc
68.53 ci |
Bore/Stroke | 3.071x3.087 inches
78 x 78 mm |
Power (gross) | 24.8 hp
18.5 kW |
Rated RPM | 3000 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2016 -
ZD1200 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1200 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1200 Series | |
Zero-turn mower |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2016 -
ZD1200 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1200 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1200 Series | |
Zero-turn mower |
Kubota ZD1211 Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 26x12.0-16 |
Dimensions | |
|---|---|
Wheelbase | 56.7 inches
144 cm |
Length | 89 inches
226 cm |
Width | 59.4 inches
150 cm |
Height (ROPS) | 78.7 inches
199 cm |
64.6 inches*With ROPS folded.
164 cm | |
Weight | 1687 lbs
765 kg |
Front tread | 41.9 inches
106 cm |
Rear tread | 47.6 inches
120 cm |
Attachments
| 2016 -
ZD1200 SeriesZero-turn mower |
|---|---|
2016 - | |
ZD1200 Series | |
Zero-turn mower | |
2016 - | |
|---|---|
ZD1200 Series | |
Zero-turn mower |
Photos

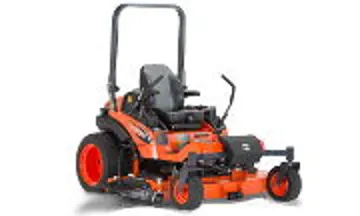

Kubota ZD1211R zero-turn mower.
Kubota Lawn Tractors Kubota ZD1211 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZD1211.
Converted Equivalents:
Horsepower (HP)24.8 hp
Kilowatts (kW)18.5 kW
Metric Horsepower (PS / CV)25.1 PS
