Kubota ZD18

The Kubota ZD18 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 719 cc 43.9 ci engine. The listed engine power is Diesel (gross): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 1349 lbs 611 kg.

Overview

	2001 - 2006 ZD SeriesZero-turn mower ZD Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower

Kubota ZD18 Engine
18HP Kubota 719cc 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Kubota ZD18 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent

Dimensions & Tires
Wheelbase	49.2 inches 124 cm
Weight	1349 lbs 611 kg
Front tire	15x6.0-6
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	450
Battery volts	12

Engine

Engine Detail — 719 cc / 43.9 ci Diesel

Manufacturer	Kubota D722
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	719 cc 43.9 ci
Bore/Stroke	2.638x2.677 inches 67 x 68 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3200
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota ZD18 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	49.2 inches 124 cm
Length	80.3 inches 203 cm
Width	53 inches 134 cm
Height (steering wheel)	44.9 inches 114 cm
Height (ROPS)	75.2 inches 191 cm
Weight	1349 lbs 611 kg
Front tread	38.3 inches 97 cm
Rear tread	42.5 inches 107 cm

Attachments

54" Mower deck
Type	mid-mount Kubota RCK54-18Z
	3-blade
Cutting width	54 inches 137 cm
Overall width	66.5 inches 168 cm
Cut height	1 to 5 inch 2 to 12 cm

Photos

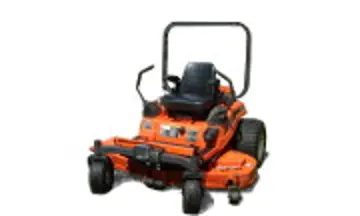

Kubota ZD18
