Kubota ZD331

The Kubota ZD331 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1262 cc 77 ci engine. The listed engine power is Diesel (gross): 31 hp / 23.1 kW. Transmission: infinite forward and reverse. Operating weight: 1715 lbs (60-inch) 777 kg.

Overview

	2007 - 2017 Z300 SeriesZero-turn mower Z300 Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price	$16,167 (2015 60-inch )
	$17,178 (2015 72-inch )

Kubota ZD331 Engine
31HP Kubota 1262cc 3-cyl diesel
Fuel tank	12.9 gal 48.8 L
Engine details ...

Kubota ZD331 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet discs brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	hydraulic wet disc

Dimensions & Tires
Wheelbase	55.5 inches 140 cm
Weight	1715 to 1770 pounds
Front tire	15x6.0-6
Rear tire	26x12.0-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	14
Charging volts	14
Battery CCA	475
Battery volts	12

References
Z200/Z300 Series published in 2016, by Kubota

Engine

Engine Detail — 1262 cc / 77 ci Diesel

Manufacturer	Kubota D1305
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	1262 cc 77 ci
Bore/Stroke	3.1x3.5 inches 79 x 89 mm
Power (gross)	31 hp 23.1 kW
Rated RPM	3000
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota ZD331 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	26x12.0-12

Dimensions
Wheelbase	55.5 inches 140 cm
Length	91.9 inches 233 cm
Width	57.5 inches 146 cm
Height (ROPS)	75.4 inches 191 cm
	61.2 inches (folded) 155 cm
Weight	1715 lbs (60-inch) 777 kg
	1770 lbs (72-inch) 802 kg
Front tread	38.4 inches 97 cm
Rear tread	45.3 inches 115 cm

Attachments

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck

Photos

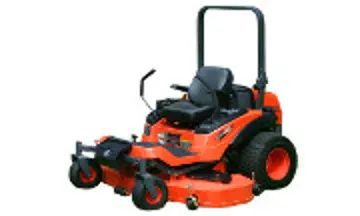

Kubota ZD331
