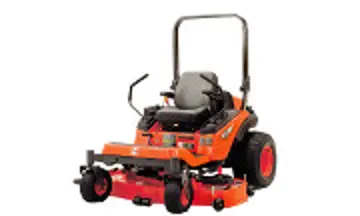

Kubota ZG332
The Kubota ZG332 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 962 cc 58.7 ci engine. The listed engine power is Gasoline (gross): 32.5 hp / 24.2 kW. Transmission: infinite forward and reverse. Operating weight: 1651 lbs (60-inch) 748 kg.
Overview
![]() | 2012 - 2016
Z300 SeriesZero-turn mower
Z300 Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Original price | $14,168 (2015 60-inch ) |
$14,678 (2015 72-inch ) | |
Kubota ZG332 Engine | |
|---|---|
32.5HP Kubota 962cc 3-cyl gasoline | |
Fuel tank | 12.7 gal
48.1 L |
Engine details ... | |
Kubota ZG332 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential power |
Wet discs brakes | |
Two-post foldable ROPS. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | hydraulic wet disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.9 inches
149 cm |
Weight | 1651 to 1763 pounds |
Front tire | 15x6.0-6 |
Rear tire | 26x12.0-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 14 |
Charging volts | 14 |
Battery CCA | 475 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Z200/Z300 Series published in 2016, by Kubota |
Engine
Engine Detail — 962 cc / 58.7 ci Gasoline
Manufacturer | Kubota WG972-G-E3-ZG-1 |
Fuel Type | Gasoline |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 962 cc
58.7 ci |
Bore/Stroke | 2.933x2.898 inches
74 x 74 mm |
Power (gross) | 32.5 hp
24.2 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.1 qts
2.0 L |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 12.8 qts
12.1 L |
![]() | |
Dimensions
Kubota ZG332 Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 26x12.0-12 |
Dimensions | |
|---|---|
Wheelbase | 58.9 inches
149 cm |
Length | 95 inches
241 cm |
Width | 57.5 inches
146 cm |
Height (ROPS) | 75.4 inches
191 cm |
64.8 inches (folded)
164 cm | |
Weight | 1651 lbs (60-inch)
748 kg |
1763 lbs (72-inch)
799 kg | |
Front tread | 38.4 inches
97 cm |
Rear tread | 45.3 inches
115 cm |
Attachments
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
72" mid-mount mower deck |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota ZG332 based on its 32.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZG332.
Estimated Continuous Field Runtime: 7.5 hrs
Approximately 7.5 hours of continuous field operation at ~75% rated power on a full tank (12.7 gal / 48.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota ZG332 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZG332.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota ZG332 against same-era industry alternatives in the same horsepower class.
Kubota ZG332
Minneapolis-Moline ZTU
