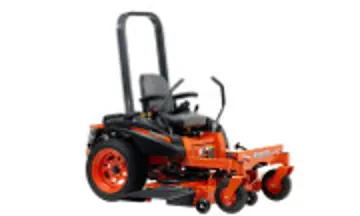

Kubota ZG127S
The Kubota ZG127S is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 27 hp / 20.1 kW. Transmission: Hydro-Gear ZT3100. Operating weight: 771 lbs 349 kg.
Overview
![]() | 2013
ZG100 SeriesZero-turn mower
ZG100 Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Kubota ZG127S Engine | |
|---|---|
27HP 724cc 2-cyl gasoline | |
Fuel tank | 4.3 gal
16.3 L |
Engine details ... | |
Kubota ZG127S Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential power |
Mechanical cog brakes | |
Two-post fixed ROPS. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 771 lbs
349 kg |
Front tire | 11x4-5 |
Rear tire | 22x10-14 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 300 |
Battery volts | 12 |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.2 ci |
Power (gross) | 27 hp
20.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear ZT3100
Transmission | Hydro-Gear ZT3100 |
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
Kubota ZG127S Tires | |
|---|---|
Lawn/turf front | 11x4-5 |
Lawn/turf rear | 22x10-14 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 76.4 inches
194 cm |
Width | 47.5 inches
120 cm |
Height (ROPS) | 65 inches
165 cm |
Weight | 771 lbs
349 kg |
Front tread | 31.3 inches
79 cm |
Rear tread | 37.6 inches
95 cm |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK54P-127Z |
3-blade | |
Cutting width | 54 inches
137 cm |
Overall width | 67.3 inches
170 cm |
Cut height | 1 to 4.5 inch
2 to 11 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota ZG127S based on its 27 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZG127S.
Estimated Continuous Field Runtime: 3.1 hrs
Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota ZG127S Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZG127S.
Converted Equivalents:
