Kubota ZD326H

The Kubota ZD326H is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1122 cc 68.5 ci engine. The listed engine power is Diesel (gross): 26 hp / 19.4 kW. Transmission: infinite forward and reverse. Operating weight: 1706 lbs 773 kg.

Engine Power
Diesel (gross): 26 hp / 19.4 kW
Fuel & Capacities
12.9 gal 48.8 L
Transmission
infinite forward and reverse
Operating Weight
1706 lbs 773 kg

Overview

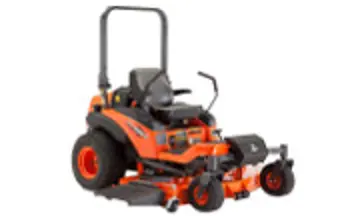

Kubota ZD326H tractor photo
2014 - 2015 Z300 SeriesZero-turn mower Z300 Series Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $15,677 in 2015
Kubota ZD326H Engine
26HP Kubota 1122cc 3-cyl diesel
Fuel tank
12.9 gal 48.8 L
Engine details ...
Kubota ZD326H Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
differential power
Wet discs brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
hydraulic wet disc
Dimensions & Tires
Wheelbase
59.8 inches 151 cm
Weight
1706 lbs 773 kg
Front tire
15x6.0-6
Rear tire
26x12.0-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
14
Charging volts
14
Battery CCA
475
Battery volts
12

Engine

Engine Detail — 1122 cc / 68.5 ci Diesel

Manufacturer
Kubota D1105
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
1122 cc 68.5 ci
Bore/Stroke
3.071x3.087 inches 78 x 78 mm
Power (gross)
26 hp 19.4 kW
Rated RPM
3000
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
ZD326H  hydrostatic speeds

Dimensions

Kubota ZD326H Tires
Lawn/turf front
15x6.0-6
Lawn/turf rear
26x12.0-12
Dimensions
Wheelbase
59.8 inches 151 cm
Length
91.9 inches 233 cm
Width
57.5 inches 146 cm
Height (ROPS)
75.4 inches 191 cm
61.2 inches (folded) 155 cm
Weight
1706 lbs 773 kg
Front tread
42.1 inches 106 cm
Rear tread
45.3 inches 115 cm

Attachments

72" Mower deck
Type
mid-mount Kubota RCK72P-326HZ
3-blade
Cutting width
72 inches 182 cm
Overall width
87.6 inches 222 cm
Cut height
1 to 5 inch 2 to 12 cm

Photos

Kubota ZD326H tractor photo

Kubota ZD326H tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota ZD326H based on its 26 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZD326H.

Estimated Continuous Field Runtime: 9.5 hrs

Approximately 9.5 hours of continuous field operation at ~75% rated power on a full tank (12.9 gal / 48.8 L).

Estimated 75% Load Fuel Burn~1.4 gal/hr (5.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota ZD326H Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZD326H.

Converted Equivalents:

Horsepower (HP)26 hp
Kilowatts (kW)19.4 kW
Metric Horsepower (PS / CV)26.4 PS

Direct Competitor Comparison

Compare Kubota ZD326H against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota ZD326H

Engine Power:Diesel (gross): 26 hp / 19.4 kW
★ Baseline Reference
DeereMarket Competitor

Deere 1023E

Engine Power:23.5
Production Years:2011 - 2026
KubotaMarket Competitor

Kubota L235

Engine Power:23.5
Production Years:1981 - 1985
Zetor ZebraMarket Competitor

Zetor Zebra 2040

Engine Power:23.5
FarmallMarket Competitor

Farmall C

Engine Power:23.5
Production Years:1948 - 1951
