Kubota ZP330

The Kubota ZP330 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 962 cc 58.7 ci engine. The listed engine power is Engine Detail — 962 cc / 58.7 ci (gross): 31 hp / 23.1 kW. Transmission: infinite forward and reverse. Operating weight: 1876 lbs (60-inch) 850 kg.

Overview

	2012 - 2016 Z300 SeriesZero-turn mower Z300 Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price	$15,861 (2015 60-inch )
	$16,422 (2015 72-inch )

Kubota ZP330 Engine
31HP Kubota 962cc 3-cyl LP-gas
Engine details ...

Kubota ZP330 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet discs brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	hydraulic wet disc

Dimensions & Tires
Wheelbase	55.5 inches 140 cm
Weight	1876 to 1940 pounds
Front tire	15x6.0-6
Rear tire	26x12.0-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	14
Charging volts	14
Battery CCA	475
Battery volts	12

References
Z200/Z300 Series published in 2016, by Kubota

Engine

Engine Detail — 962 cc / 58.7 ci

Manufacturer	Kubota WG972
Configuration	3-cylinder, liquid-cooled
LP-gas
Displacement	962 cc 58.7 ci
Bore/Stroke	2.933x2.898 inches 74 x 74 mm
Power (gross)	31 hp 23.1 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2.1 qts 2.0 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	12.8 qts 12.1 L

Dimensions

Kubota ZP330 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	26x12.0-12

Dimensions
Wheelbase	55.5 inches 140 cm
Length	91.7 inches 232 cm
Width	66.1 inches 167 cm
Height (ROPS)	75.4 inches 191 cm
	64.8 inches (folded) 164 cm
Weight	1876 lbs (60-inch) 850 kg
	1940 lbs (72-inch) 879 kg
Front tread	38.4 inches 97 cm
Rear tread	45.3 inches 115 cm

Attachments

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck

Photos

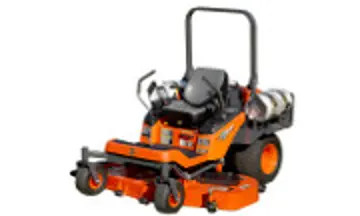

Kubota ZP330 tractor photo
