Lamborghini 115 Formula

The Lamborghini 115 Formula is a tractor produced by Lamborghini. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 115 hp 85.8 kW. Transmission: Multispeed. Operating weight: 10362 lbs 4700 kg.

Overview

	1991 - 2000 Formula SeriesRow-Crop tractor
1991 - 2000
Formula Series
Row-Crop tractor

Production
Manufacturer	Lamborghini
Row-Crop tractor

Lamborghini 115 Formula Engine
SAME 6.0L 6-cyl diesel
Fuel tank	60.8 gal 230.1 L
Engine details ...

Lamborghini 115 Formula Power
Engine	115 hp 85.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic
Cab standard with available air-conditioning.

Hydraulics
Pump flow	15.2 gpm 57.5 lpm

Tractor hitch
Rear lift	13671 lbs 6201 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E/1000/1000E
Front PTO	independent OptOptional
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	108.3 inches 275 cm
Weight	10362 lbs 4700 kg
Front tire	16.9R24
Rear tire	18.4R34
Full dimensions and tires ...

References
Formula 115-135 published in 1997, by Lamborghini*
*Publication contains known errors.

Engine

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	SAME 1000.6W
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	366.1 ci 6.0 L
Bore/Stroke	4.13x inches 105 x 116 mm
Power	115 hp 85.8 kW
Rated RPM	2500
Torque	291.4 lb-ft 395.1 Nm
Torque RPM	1300

Transmission

Transmission options
54-speed three-speed power shift
72-speed creeper

Transmission — Multispeed

Transmission	Multispeed
Type	three-speed power shift
Gears	54 forward and reverse
Clutch	electro-hydraulic wet disc
Six gears (1-6) in three ranges (L/M/H) with three-speed power shift.
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.

Transmission — 72 forward and reverse creeper

Type	creeper
Gears	72 forward and reverse
Creeper option adds a fourth ranges to the standard transmission.
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively.

Dimensions

Lamborghini 115 Formula Tires
Standard tires (ag)	Front: 16.9R24. Rear: 18.4R34
Optional tires (ag)	Front: 14.9R28. Rear: 16.9R38
	Front: 14.9R30. Rear: 18.4R38

Dimensions
Wheelbase	108.3 inches 275 cm
Length	116.9 inches 296 cm
	179.5 inches (with hitch) 455 cm
Width	87.2 inches 221 cm
Height (hood)	72 inches 182 cm
Height (cab)	108.5 inches 275 cm
Weight	10362 lbs 4700 kg
Ground clearance	15.8 inches 40 cm
Front tread	70.9 to 78.7 inches 180 to 199 cm

Photos

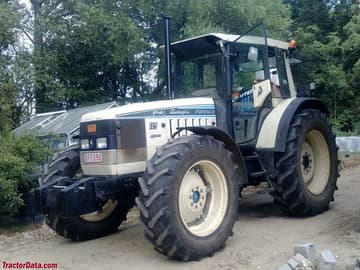

Lamborghini Formula 115, left side.

Lamborghini Formula 115, right side.
