Lamborghini 956

The Lamborghini 956 is a tractor produced by Lamborghini. It is equipped with a 335.6 ci 5.5 L engine. The rated power output is 95 hp 70.8 kW. Transmission: 20 forward and 12 reverse. Operating weight: 8025 to 9656 pounds.

Overview

	1983 - 1996 Row-Crop tractor
1983 - 1996
Row-Crop tractor

Production
Manufacturer	Lamborghini (a part of SAME)
Row-Crop tractor

Lamborghini 956 Engine
Lamborghini 5.5L 6-cyl diesel
Fuel tank	34.3 gal 129.8 L
Engine details ...

Lamborghini 956 Power
Engine	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab available with air-conditioning.

Hydraulics
Pump flow	16.6 gpm 62.8 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	10141 lbs 4599 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	103 inches 261 cm
4WD Wheelbase	102.4 inches 260 cm
Weight	8025 to 9656 pounds
Front tire	9.00-16
2WD Rear tire	16.9/14-38
Full dimensions and tires ...

Electrical
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	55
Battery volts	12
Battery AH	110

References
C956 published in 1988, by Lamborghini

Engine

Engine Detail — 335.6 ci / 5.5 L Diesel

Manufacturer	Lamborghini 916.6 W
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	335.6 ci 5.5 L
Bore/Stroke	4.0551x4.3307 inches 103 x 110 mm
Power	95 hp 70.8 kW
Fuel system	direct injection
Air cleaner	dry
Rated RPM	2180
Torque	240.5 lb-ft 326.1 Nm
Torque RPM	1375
Starter volts	12

Transmission

Transmission options
12-speed
24-speed
20-speed creeper

Transmission — 12 forward and 3 reverse

Gears	12 forward and 3 reverse
Clutch	hydraulic dry disc
Four gears (1-4) plus reverse (R) in three ranges (L/N/V).
With 16.9/14-38 rear tires.

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
Clutch	hydraulic dry disc

Transmission — 20 forward and 12 reverse creeper

Type	creeper
Gears	20 forward and 12 reverse
Add additional creeper (Super Reduction) range for ranges L and N.
With 16.9/14-38 rear tires.

Dimensions

Lamborghini 956 Tires
2WD Standard tires (ag)	Front: 9.00-16. Rear: 16.9/14-38
4WD Standard tires (ag)	Front: 14.9/13-28. Rear: 16.9/14-38
2WD Optional tires (ag)	Front: 7.50-18. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 7.50-18. Rear: 13.6/12-38
2WD Optional tires (ag)	Front: 9.00-16. Rear: 18.4/15-34
2WD Optional tires (ag)	Front: 9.00-16. Rear: 23.1/18-30
4WD Optional tires (ag)	Front: 14.9/13-24. Rear: 16.9/14-34
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 16.9/14-24. Rear: 18.4/15-34
4WD Optional tires (ag)	Front: 14.9/13-24. Rear: 23.1/18-30

Dimensions
2WD Wheelbase	103 inches 261 cm
4WD Wheelbase	102.4 inches 260 cm
2WD Length	151 inches 383 cm
4WD Length	158 inches 401 cm
Width	77.1 inches*Minimum width 195 cm
2WD Ground clearance	20.9 inches 53 cm
4WD Ground clearance	16.2 inches 41 cm
2WD Front tread	59.1 to 78.7 inches 150 to 199 cm
4WD Front tread	66.9 to 74.8 inches 169 to 189 cm
Rear tread	60.2 to 83.9 inches 152 to 213 cm

Lamborghini 956 Weight
2WD ROPS	8025 lbs 3640 kg
2WD Cab	8466 lbs 3840 kg
4WD ROPS	9213 lbs 4179 kg
4WD Cab	9656 lbs 4379 kg

Lamborghini 956 Height
2WD Hood	69.3 inches 176 cm
4WD Hood	68.5 inches 173 cm
ROPS	102.8 inches 261 cm
Cab	104.4 inches 265 cm

Photos

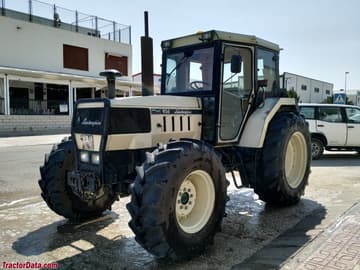

Lamborghini 956
