Lamborghini 774-80

The Lamborghini 774-80 is a tractor produced by Lamborghini. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (listed): 80 hp / 59.7 kW. Transmission: 20 forward and reverse. Operating weight: 7706 lbs 3495 kg.

Engine Power

Diesel (listed): 80 hp / 59.7 kW

Fuel & Capacities

26.4 gal 99.9 L

Transmission

20 forward and reverse

Operating Weight

7706 lbs 3495 kg

Overview

	1986 - 1990

Production
Manufacturer	Lamborghini

Lamborghini 774-80 Engine
SAME 4.0L 4-cyl diesel
Fuel tank	26.4 gal 99.9 L
Engine details ...

Lamborghini 774-80 Transmission
20-speed
Transmission details ...

Lamborghini 774-80 Power
Engine	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Four-post ROPS. Cab optional.

Hydraulics
Pump flow	11.2 gpm 42.4 lpm

Tractor hitch
Rear Type	II
Rear lift	7563 lbs 3430 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	91.3 inches 231 cm
Weight	7706 lbs 3495 kg
Front tire	14.9-24
Rear tire	16.9-34
Full dimensions and tires ...

Engine

Engine Detail — 244.1 ci / 4.0 L Diesel

Manufacturer	SAME 1000.4W1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	244.1 ci 4.0 L
Bore/Stroke	4.13x4.54 inches 105 x 115 mm
Power	80 hp 59.7 kW
Rated RPM	2500
Torque	210.2 lb-ft 285.0 Nm
Torque RPM	1300
Starter volts	12

Transmission

Transmission — 20 forward and reverse

Gears

20 forward and reverse

Dimensions

Lamborghini 774-80 Tires
Ag front	14.9-24
Ag rear	16.9-34

Dimensions
Wheelbase	91.3 inches 231 cm
Length	160.6 inches 407 cm
Width	73.6 inches 186 cm
Height	103.5 inches 262 cm
Weight	7706 lbs 3495 kg

Photos

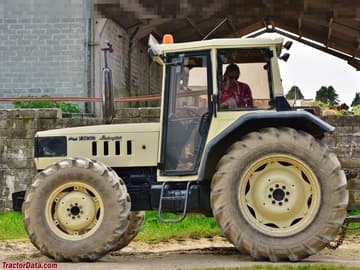

Lamborghini 774, left side.

Lamborghini 774, front view.

Lamborghini 774, right side.

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini 774-80 based on its 80 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 774-80.

Estimated Continuous Field Runtime: 6.3 hrs

Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (26.4 gal / 99.9 L).

Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
