Lamborghini 854

The Lamborghini 854 is a tractor produced by Lamborghini. It is equipped with a 253.84 ci 4.2 L engine. The listed engine power is Diesel (net): 82 hp / 61.1 kW; Diesel (gross): 90 hp / 67.1 kW. Transmission: 12 forward and 3 reverse. Drive type: 4x2 2WD. Operating weight: 6700 to 7145 pounds.

Overview

	1976 - 1985

Production
Manufacturer	Lamborghini

Variants
854	2WD
854DT	4WD

Lamborghini 854 Engine
Lamborghini 4.2L 4-cyl diesel
Fuel tank	29.1 gal 110.1 L
Engine details ...

Lamborghini 854 Power
Engine (gross)	90 hp 67.1 kW
Engine (net)	82 hp 61.1 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (854DT)
Steering	hydrostatic power
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.

Tractor hitch
Rear Type	2
Control	position and draft control
Rear lift (at ends)	8,379 lbs 3800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	96.4 inches 244 cm
4WD Wheelbase	96.8 inches 245 cm
Weight	6700 to 7145 pounds
Front tire	7.50-18
Rear tire	16.9/14-34 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 253.84 ci / 4.2 L Diesel

Manufacturer	Lamborghini
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	253.84 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power (net)	82 hp 61.1 kW
Power (gross)	90 hp 67.1 kW
Air cleaner	oil bath
Rated RPM	2265
Starter volts	12

Transmission

Transmission options
12-speed synchronized
12-speed creeper

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	279mm dry disc

Transmission — 12 forward and 3 reverse creeper

Type	creeper
Gears	12 forward and 3 reverse
Clutch	279mm dry disc

Dimensions

Lamborghini 854 Tires
Standard tires (ag)	Front: 7.50-18. Rear: 16.9/14-34 (2WD)
	Front: 12.4/11-24. Rear: 16.9/14-34 (4WD)
Optional tires (ag)	Front: 7.50-20. Rear: 18.4/15-34 (2WD)
	Front: 6.50-20. Rear: 13.6/12-38 (2WD)
	Front: 12.4/11-28. Rear: 18.4/15-34 (4WD)
	Front: 12.4/11-24. Rear: 13.6/12-38 (4WD)

Dimensions
2WD Wheelbase	96.4 inches 244 cm
4WD Wheelbase	96.8 inches 245 cm
Length	149.6 inches 379 cm
2WD Weight	6,700 lbs 3039 kg
4WD Weight	7,145 lbs 3240 kg
2WD Ground clearance	23.62 inches 59 cm
4WD Ground clearance	16.50 inches 41 cm
Front tread	59.05 to 78.74 inches 149 to 199 cm (2WD)
Front tread	56.3 to 78.35 inches 143 to 199 cm (4WD)
Rear tread	69.04 to 87.4 inches 175 to 221 cm

Lamborghini 854 Height
Hood	61 inches 154 cm
ROPS	100.4 inches 255 cm
Exhaust	105.5 inches 267 cm

Photos

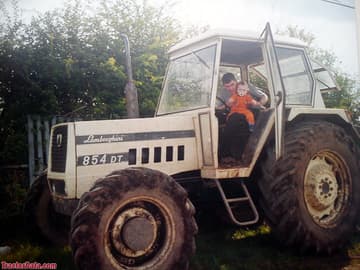

Lamborghini 854
