Lamborghini 1106

The Lamborghini 1106 is a tractor produced by Lamborghini. It is equipped with a 335.6 ci 5.5 L engine. The listed engine power is Diesel (listed): 110 hp / 82.0 kW. Transmission: 20 forward and 12 reverse. Operating weight: 8686 to 10317 pounds.

Engine Power

Diesel (listed): 110 hp / 82.0 kW

Fuel & Capacities

63.4 gal 240.0 L

Transmission

20 forward and 12 reverse

Operating Weight

8686 to 10317 pounds

Overview

	1985 - 1996 Row-Crop tractor

Production
Manufacturer	Lamborghini (a part of SAME)
Row-Crop tractor

Lamborghini 1106 Engine
Lamborghini 5.5L 6-cyl diesel
Fuel tank	63.4 gal 240.0 L
Engine details ...

Lamborghini 1106 Power
Engine	110 hp 82.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab available with air-conditioning.

Hydraulics
Pump flow	14.9 gpm 56.4 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	10141 lbs 4599 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	102.36 inches 259 cm
Weight	8686 to 10317 pounds
Front tire	10.00-16
2WD Rear tire	18.4/15-34
Full dimensions and tires ...

Electrical
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	55
Battery volts	12
Battery AH	143

Engine

Engine Detail — 335.6 ci / 5.5 L Diesel

Manufacturer	Lamborghini 916.6 W
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	335.6 ci 5.5 L
Bore/Stroke	4.06x4.33 inches 103 x 110 mm
Power	110 hp 82.0 kW
Fuel system	direct injection
Air cleaner	dry
Rated RPM	2500
Torque	264.8 lb-ft 359.1 Nm
Torque RPM	1375
Starter volts	12

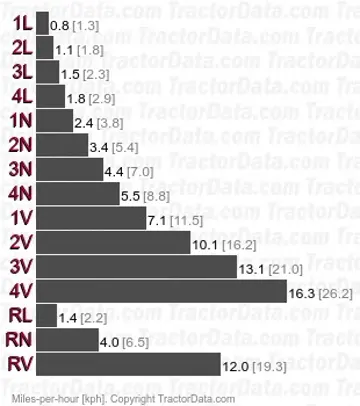

Transmission

Transmission options
9-speed
24-speed
20-speed creeper

Transmission — 9 forward and 3 reverse

Gears	9 forward and 3 reverse
Clutch	hydraulic cerametallic disc
Four gears (1-4) plus reverse (R) in three ranges (L/N/V).
With 18.4/15-34 rear tires.

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
Clutch	hydraulic cerametallic disc
Four gears (1-4) in three ranges (S/N/F) with two-speed high-low shift.
Transmission
Type	creeper
Gears	20 forward and 12 reverse
With 18.4/15-34 rear tires.

Dimensions

Lamborghini 1106 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4/15-34
4WD Standard tires (ag)	Front: 16.9/14-24. Rear: 18.4/15-34
2WD Optional tires (ag)	Front: 9.00-16. Rear: 16.9/14-38
2WD Optional tires (ag)	Front: 9.00-16. Rear: 13.6/12-38
2WD Optional tires (ag)	Front: 11.00-16. Rear: 16.9/14-38
4WD Optional tires (ag)	Front: 14.9/13-28. Rear: 16.9/14-38
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 14.9/13-30. Rear: 18.4/15-38

Dimensions
Wheelbase	102.36 inches 259 cm
2WD Length	158.9 inches 403 cm
4WD Length	166.3 inches 422 cm
Width	83.5 inches*Minimum width 212 cm
2WD Ground clearance	23.6 inches 59 cm
4WD Ground clearance	17.7 inches 44 cm
2WD Front tread	59.1 to 78.7 inches 150 to 199 cm
4WD Front tread	63 to 74.8 inches 160 to 189 cm
Rear tread	65 to 89 inches 165 to 226 cm

Lamborghini 1106 Weight
2WD ROPS	8686 lbs 3939 kg
2WD Cab	9127 lbs 4140 kg
4WD ROPS	9876 lbs 4479 kg
4WD Cab	10317 lbs 4679 kg

Lamborghini 1106 Height
2WD Hood	69.7 inches 177 cm
4WD Hood	69.5 inches 176 cm
ROPS	104.5 inches 265 cm
Cab	106.1 inches 269 cm

Photos

Lamborghini 1106 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini 1106 based on its 110 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 1106.

Estimated Continuous Field Runtime: 11.1 hrs

Approximately 11.1 hours of continuous field operation at ~75% rated power on a full tank (63.4 gal / 240 L).

Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
