Lamborghini Champion 135

The Lamborghini Champion 135 is a tractor produced by Lamborghini. It is equipped with a 366.1 ci 6.0 L engine. The listed engine power is Diesel (listed): 135 hp / 100.7 kW. Transmission: 27 forward and reverse. Operating weight: 13448 lbs 6100 kg.

Engine Power

Diesel (listed): 135 hp / 100.7 kW

Fuel & Capacities

60.8 gal 230.1 L

Transmission

27 forward and reverse

Operating Weight

13448 lbs 6100 kg

Overview

	1998 - 2004 Champion SeriesRow-Crop tractor Champion Series Row-Crop tractor

Production
Manufacturer	Lamborghini
Row-Crop tractor

Lamborghini Champion 135 Engine
SDF 6.0L 6-cyl diesel
Fuel tank	60.8 gal 230.1 L
	100.4 galOptOptional 380.0 L
Engine details ...

Lamborghini Champion 135 Power
Engine	135 hp 100.7 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	open center
	load-sensing OptOptional
Valves	8 OptOptional
Pump flow	19.3 gpm (open) 73.1 lpm
	27.2 gpm (load-sensing) 103.0 lpm

Tractor hitch
Rear lift	15432 lbs 6999 kg
	18960 lbs*With optional lift cylinders. 8600 kg
Front lift	8818 lbsOptOptional 3999 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000
	540E/1000
Front PTO	independent OptOptional
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	108.3 inches 275 cm
Weight	13448 lbs 6100 kg
Front tire	420/70R30
Rear tire	520/70R38
Full dimensions and tires ...

Electrical
Charging system	alternator

References

Champion 120-135-150 published in 1999, by Lamborghini

Engine

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	SDF 1000.6 WT 3V
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	366.1 ci 6.0 L
Bore/Stroke	4.134x4.54 inches 105 x 115 mm
Power	135 hp 100.7 kW
Rated RPM	2350
Torque	433 lb-ft 587.1 Nm
Torque RPM	1450
Starter type	electric

Transmission

Transmission options
18-speed 9-speed power shift
27-speed creeper

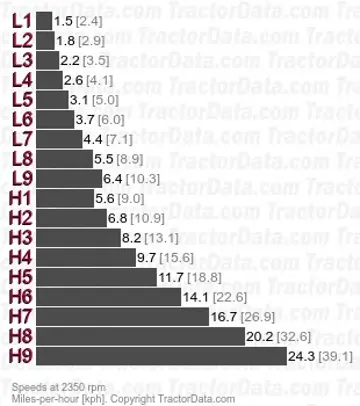

Transmission — 18 forward and reverse 9-speed power shift

Type	9-speed power shift
Gears	18 forward and reverse
Clutch	hydraulic wet disc
Nine power shift gears in two ranges with power shuttle.
With 520/70R38 rear tires. Rear speeds are aboutg 9% faster than forward.

Transmission
Type	creeper
Gears	27 forward and reverse

Dimensions

Lamborghini Champion 135 Tires
Standard tires (ag)	Front: 420/70R30. Rear: 520/70R38
Optional tires (ag)	Front: 540/65R28. Rear: 600/65R38
	Front: 540/65R30. Rear: 650/65R38
	Front: 480/70R30. Rear: 580/70R38

Dimensions
Wheelbase	108.3 inches 275 cm
Length	183.9 inches*Length with three-point linkage 467 cm
Width	96.5 inches*Minimum width 245 cm
Height (hood)	61.4 inches 155 cm
Height (cab)	113.4 inches 288 cm
Weight	13448 lbs 6100 kg
Ground clearance	20.5 inches 52 cm
Front tread	71.7 to 100.8 inches 182 to 256 cm
Rear tread	76 to 92.5 inches 193 to 234 cm

Photos

Lamborghini Champion 135 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini Champion 135 based on its 135 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini Champion 135.

Estimated Continuous Field Runtime: 8.7 hrs

Approximately 8.7 hours of continuous field operation at ~75% rated power on a full tank (60.8 gal / 230.2 L).

Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
