Landini 10000S
The Landini 10000S is a tractor produced by Landini. It is equipped with a 353.9 ci 5.8 L engine. The rated power output is 103 hp 76.8 kW. Transmission: 12 forward and 4 reverse. Operating weight: 9520 to 10251 pounds.
Engine Power
103 hp
76.8 kW
Fuel & Capacities
41.6 gal
157.5 L
Transmission
12 forward and 4 reverse
Operating Weight
9520 to 10251 pounds
Landini 10000S Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1993
Row-Crop tractor |
|---|---|
1987 - 1993 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Landini |
Row-Crop tractor | |
Variants | |
|---|---|
1014 | similar Massey Ferguson model |
Landini 10000S Engine | |
|---|---|
Perkins 5.8L 6-cyl diesel | |
Engine details ...  |
Landini 10000S Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Landini 10000S Power | |
|---|---|
Engine | 103 hp
76.8 kW |
PTO (claimed) | 92 hp
68.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 41.6 gal
157.5 L |
Hydraulic system | 22.5 gal
85.2 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 22.5 gal
85.2 L |
Total flow | 14.0 gpm
53.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 9371 lbs
4250 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 104.7 inches
265 cm |
4WD Wheelbase | 102.8 inches
261 cm |
Weight | 9520 to 10251 pounds |
Front tire | 11.00-16 |
2WD Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 45 |
References | |
|---|---|
 | |
10000S published by Landini |
Engine
Engine Detail — 353.9 ci / 5.8 L Diesel
Manufacturer | Perkins A6.3541 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 353.9 ci
5.8 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 103 hp
76.8 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Torque | 297.3 lb-ft
403.1 Nm |
Torque RPM | 1300 |
Oil capacity | 17 qts
16.1 L |
Coolant capacity | 25.4 qts
24.0 L |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | 304.8mm dry disc |
 | |
Dimensions
Landini 10000S Tires | |
|---|---|
2WD Standard tires (ag) | Front: 11.00-16. Rear: 18.4-38 |
4WD Standard tires (ag) | Front: 13.6-28. Rear: 18.4-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 104.7 inches
265 cm |
4WD Wheelbase | 102.8 inches
261 cm |
Length | 173.3 inches
440 cm |
Width | 80.6 inches*Minimum width.
204 cm |
Height (cab) | 118.5 inches
300 cm |
2WD Weight | 9520 lbs
4318 kg |
4WD Weight | 10251 lbs
4649 kg |
2WD Ground clearance | 23.1 inches
58 cm |
4WD Ground clearance | 15.1 inches
38 cm |
2WD Front tread | 63 to 78.7 inches
160 to 199 cm |
4WD Front tread | 65 inches
165 cm |
Rear tread | 62.4 to 83.1 inches
158 to 211 cm |
Photos

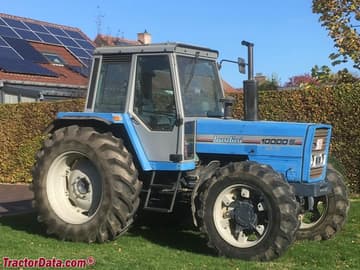

Landini 10000S
