Landini Advantage 85F

The Landini Advantage 85F is a tractor produced by Landini. It is equipped with a 248 ci 4.1 L engine. The listed engine power is Diesel (listed): 83 hp / 61.9 kW. Transmission: 12 forward and reverse. Operating weight: 5401 to 5622 pounds.

Engine Power

Diesel (listed): 83 hp / 61.9 kW

Fuel & Capacities

14 gal 53.0 L

Transmission

12 forward and reverse

Operating Weight

5401 to 5622 pounds

Overview

	1995 - 2000 Advantage SeriesOrchard/Vineyard tractor Advantage Series Orchard/Vineyard tractor

Production
Manufacturer	Landini (a part of Argo)
Orchard/Vineyard tractor

Variants
85GE	low-profile
85F	orchard
85L	wide orchard
85GT	utility

Landini Advantage 85F Engine
Perkins 4.1L 4-cyl diesel
Fuel tank	14 gal 53.0 L
Engine details ...

Landini Advantage 85F Power
Engine	83 hp 61.9 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post mid-mount foldable ROPS. Cab optional.

Hydraulics
Valves	2
Pump flow	11.2 gpm 42.4 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750 (1.375)
Engine RPM	540@1944
	750@1934

Dimensions & Tires
2WD Wheelbase	81.5 inches 207 cm
4WD Wheelbase	79.5 inches 201 cm
Weight	5401 to 5622 pounds
Front tire	7.50-16
2WD Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	Lucas A115
Charging amps	45
Battery volts	12

Engine

Engine Detail — 248 ci / 4.1 L Diesel

Manufacturer	Perkins 4.248
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	248 ci 4.1 L
Bore/Stroke	3.975x5.00 inches 101 x 127 mm
Power	83 hp 61.9 kW
Air cleaner	dry
Compression	16:1
Rated RPM	2200
Torque	227.9 lb-ft 309.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed creeper with mechanical shuttle
12-speed mechanical shuttle

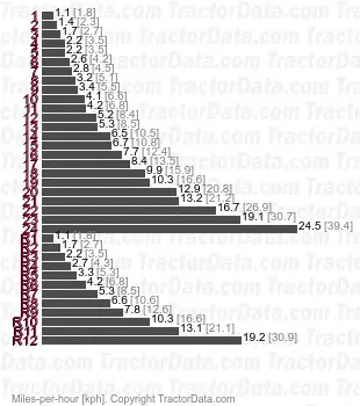

Transmission — 12 forward and reverse creeper with mechanical shuttle

Type	creeper with mechanical shuttle
Gears	12 forward and reverse
Clutch	279.4mm mechanial dry disc
With 14.9-28 rear tires.

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	279.4mm mechanial dry disc

Dimensions

Landini Advantage 85F Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 13.6-28
4WD Standard tires (ag)	Front: 250/80-18. Rear: 360/70-28
2WD Optional tires (ag)	Front: 6.00-16. Rear: 380/70R24
2WD Optional tires (ag)	Front: 6.50-16. Rear: 380/70-24
4WD Optional tires (ag)	Front: 8.25-16. Rear: 13.6-24
4WD Optional tires (ag)	Front: 250/80-18. Rear: 14.9-24
4WD Optional tires (ag)	Front: 360/70-16. Rear: 380/70R24

Dimensions
2WD Wheelbase	81.5 inches 207 cm
4WD Wheelbase	79.5 inches 201 cm
Length	135.8 inches 344 cm
Width	52.4 inches 133 cm
Height (steering wheel)	58.3 inches 148 cm
Height (cab)	89.8 inches 228 cm
2WD ROPS Weight	5401 lbs 2449 kg
4WD ROPS Weight	5622 lbs 2550 kg
Ground clearance	15.8 inches 40 cm
2WD Front tread	42.8 to 58.5 inches 108 to 148 cm
4WD Front tread	42.8 to 54.7 inches 108 to 138 cm
Rear tread	38.6 to 60.2 inches 98 to 152 cm

Photos

Landini Advantage 85F tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Landini Advantage 85F based on its 83 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Landini Advantage 85F.

Estimated Continuous Field Runtime: 3.2 hrs

Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (14 gal / 53 L).

Estimated 75% Load Fuel Burn~4.3 gal/hr (16.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
