CaseIH JX95 Maxxima

The CaseIH JX95 Maxxima is a tractor produced by Caseih. It is equipped with a 238.5 ci 3.9 L engine. The listed engine power is Diesel (gross): 93 hp / 69.4 kW. Transmission: 20 forward and 12 reverse. Operating weight: 6790 to 7615 pounds.

Engine Power

Diesel (gross): 93 hp / 69.4 kW

Fuel & Capacities

24.3 gal 92.0 L

Transmission

20 forward and 12 reverse

Operating Weight

6790 lbs 3079 kg

Overview

	2002 - 2009 Model year 2002-20032003-2009 JX SeriesUtility tractorTurk Tractor built JX Series Utility tractor Turk Tractor built

Production
Distributor	CaseIH
Manufacturer	Turk Tractor
Utility tractor
Built in Turkey

Variants
JX95	utility
JX95HC	high-crop

CaseIH JX95 Engine
Iveco 3.9L 4-cyl diesel
Fuel tank	24.3 gal 92.0 L
Engine details ...

CaseIH JX95 Power
Engine (gross)	93 hp 69.4 kW
PTO (claimed)	80 hp 59.7 kW
Drawbar (tested)	66.3 hp 49.4 kW
PTO (tested)	83.8 hp 62.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
Independent wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Type	open center
Valves	3
Pump flow	10.6 gpm 40.1 lpm
	13.6 gpm*Optional, standard in USA 51.5 lpm

Tractor hitch
Rear Type	II
Rear lift	7718 lbs*Advertised. 3820 lbs actual lift during testing 3500 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E
	540/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	94 inches 238 cm
4WD Wheelbase	91.8 inches 233 cm
Weight	6790 to 7615 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 238.5 ci / 3.9 L Diesel

Manufacturer	Iveco
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	238.5 ci 3.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power (gross)	93 hp 69.4 kW
Air cleaner	paper element
Compression	17.0:1
Rated RPM	2500
Torque	248.6 lb-ft 337.1 Nm
Torque RPM	1500
Starter volts	12

Transmission

Transmission options
12-speed mechanical shuttle
20-speed creeper

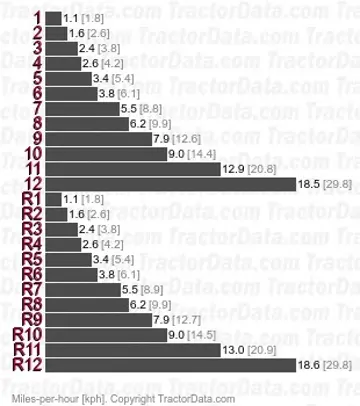

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Four gears (1-4) in three ranges with mechanical shuttle.

Transmission
Type	creeper
Gears	20 forward and 12 reverse

Dimensions

CaseIH JX95 Tires

Dimensions
2WD Wheelbase	94 inches 238 cm
4WD Wheelbase	91.8 inches 233 cm
2WD Length	162 inches 411 cm
4WD Length	159.8 inches 405 cm
Width	71.2 inches 180 cm
2WD Cab Operating weight	6790 lbs 3079 kg
4WD Cab Operating weight	7615 lbs 3454 kg

Tests

OCED Tractor Test 2023
Diesel 12-speed 4WD March 2002 - July 2002, Link: OCED Tractor Test 2023 file
PTO performance
Max power	83.8 hp 62.5 kW
Fuel use	4.7 gal/hour 17.8 l/hour
Power at rated engine speed	81.7 hp 60.9 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Power at rated PTO speed	81.7 hp 60.9 kW
Fuel use	4.5 gal/hour 17.0 l/hour
Drawbar performance
Max power	66.3 hp 49.4 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Max pull	4115 lbs 1866 kg

Photos

CaseIH JX95 Maxxima tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih JX95 Maxxima based on its 93 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih JX95 Maxxima.

Estimated Continuous Field Runtime: 5 hrs

Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (24.3 gal / 92 L).

Estimated 75% Load Fuel Burn~4.8 gal/hr (18.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
