Landini 12500
The Landini 12500 is a tractor produced by Landini. It is equipped with a 353.9 ci 5.8 L engine. The listed engine power is Engine Detail — 353.9 ci / 5.8 L (listed): 110 hp / 82.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 10606 to 11687 pounds.
Overview
 | 1978 - 1990
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Landini |
Row-Crop tractor | |
Landini 12500 Engine | |
|---|---|
Perkins 5.8L 6-cyl | |
Fuel tank | 47.6 gal
180.2 L |
Engine details ...  | |
Landini 12500 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Landini 12500 Power | |
|---|---|
Engine | 110 hp
82.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Four-post ROPS canopy. Cab available. |
Hydraulics | |
|---|---|
Total flow | 16.4 gpm
62.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 10,584 lbs
4800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 110.2 inches
279 cm |
Weight | 10606 to 11687 pounds |
Front tire | 11.00-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 353.9 ci / 5.8 L
Manufacturer | Perkins A6.354 |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 353.9 ci
5.8 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 110 hp
82.0 kW |
Rated RPM | 2200 |
Torque | 275.9 lb-ft
374.1 Nm |
Torque RPM | 1400 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
Landini 12500 Tires | |
|---|---|
Ag front | 11.00-16 |
Ag rear | 18.4-38 |
Ag front | 13.6-28 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 110.2 inches
279 cm |
Length | 181.5 inches
461 cm |
2WD Weight | 10606 lbs
4810 kg |
4WD Weight | 11687 lbs
5301 kg |
Photos

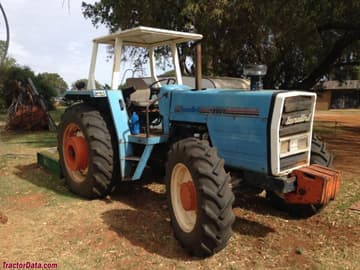

Landini 12500 from South Africa, using the ADE-branded engine.
Landini 12500 from South Africa, using the ADE-branded engine.
Landini 12500 from South Africa, using the ADE-branded engine.
Recommended Implements & Sizing Guide
Engineering recommendations for Landini 12500 based on its 110 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Landini 12500.
Estimated Continuous Field Runtime: 8.3 hrs
Approximately 8.3 hours of continuous field operation at ~75% rated power on a full tank (47.6 gal / 180.2 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Landini 12500 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Landini 12500.
Converted Equivalents:
