Landini 6880

The Landini 6880 is a tractor produced by Landini. It is equipped with a 235.5 ci 3.9 L engine. The rated power output is 62 hp 46.2 kW. Transmission: 24 forward and 12 reverse. Operating weight: 6923 to 7584 pounds.

Overview

	1987 - 1997 80 SeriesUtility tractor
1987 - 1997
80 Series
Utility tractor

Production
Manufacturer	Landini
Utility tractor

Landini 6880 Engine
Perkins 3.9L 4-cyl diesel
Fuel tank	27 gal 102.2 L
Engine details ...

Landini 6880 Power
Engine	62 hp 46.2 kW

Mechanical
Two- or four-wheel drive
Differential lock	hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with available air-conditioning.

Hydraulics
Total flow	11.2 gpm 42.4 lpm

Tractor hitch
Rear Type	II
Control	position control and top-link draft sensing
Rear lift	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	540/750 OptOptional
Engine RPM	540@1944
	1000@1917
	750@1934

Dimensions & Tires
2WD Wheelbase	94.8 inches 240 cm
4WD Wheelbase	93.9 inches 238 cm
Weight	6923 to 7584 pounds
Front tire	7.50-16
Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Charging system	alternator

References
80 Series III published by Landini*
80 Series published in 1988, by Landini
*Publication contains known errors.

Engine

Engine Detail — 235.5 ci / 3.9 L Diesel

Manufacturer	Perkins A4.236
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	235.5 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	62 hp 46.2 kW
Air cleaner	oil bath
Compression	16:1
Rated RPM	2200
Torque	179.2 lb-ft 243.0 Nm
Torque RPM	1400

Transmission

Transmission options
12-speed synchromesh
12-speed shuttle
24-speed synchromesh
24-speed creeper

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	dry disc
Four gears in three ranges.

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
Clutch	dry disc
Four gears in three ranges with shuttle.
With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward.

Transmission — 24 forward and 12 reverse synchromesh

Type	synchromesh
Gears	24 forward and 12 reverse
The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%.

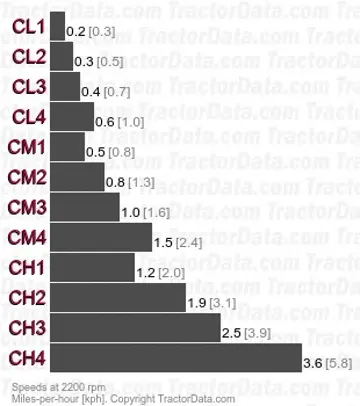

Type	creeper
Gears	24 forward and 12 reverse
With 16.9/14-34 rear tires.

Dimensions

Landini 6880 Tires
Ag front	7.50-16
Ag rear	16.9R30
Ag front	12.4R24
Ag rear	16.9R30

Dimensions
2WD Wheelbase	94.8 inches 240 cm
4WD Wheelbase	93.9 inches 238 cm
Length	148.9 inches 378 cm
Width	72.1 inches 183 cm
Height (cab)	101.3 inches 257 cm
2WD Weight	6923 lbs 3140 kg
4WD Weight	7584 lbs 3440 kg
4WD Clearance (front axle)	16.3 inches 41 cm

Photos

Landini 6880 tractor photo
