Long 1100
The Long 1100 is a tractor produced by Long. It is equipped with a 285 ci 4.7 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 16 forward and 8 reverse. Operating weight: 8,000 lbs 3628 kg.
Engine Power
105 hp
78.3 kW
Fuel & Capacities
37 gal
140.0 L
Transmission
16 forward and 8 reverse
Operating Weight
8,000 lbs
3628 kg
Long 1100 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1975 - 1977
Row-Crop tractorZetor built |
|---|---|
1975 - 1977 | |
Row-Crop tractor | |
Zetor built | |
1975 - 1977 | |
|---|---|
Row-Crop tractor | |
Zetor built |
Production | |
|---|---|
Distributor | Long |
Manufacturer | Zetor |
Row-Crop tractor | |
Long 1100 Engine | |
|---|---|
Zetor 4.7L 4-cyl diesel | |
Engine details ...  |
Long 1100 Transmission | |
|---|---|
16-speed partial power shift | |
Transmission details ...  |
Long 1100 Power | |
|---|---|
Engine | 105 hp
78.3 kW |
PTO (claimed) | 92 hp
68.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | hydraulic power |
Differential hydraulic wet disc brakes | |
ROPS. Cab optional. | |
Capacity | |
|---|---|
Fuel | 37 gal
140.0 L |
Steering | 7.5 qts
7.1 L |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 5,300 lbs
2404 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.5 inches
234 cm |
Weight | 8,000 lbs
3628 kg |
Front tire | 9.5Lx15 |
Rear tire | 16.9x34 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
1100 Agricultural Tractor published in 1975, by Long |
Engine
| 1975 - 1977
Row-Crop tractorZetor built |
|---|---|
1975 - 1977 | |
Row-Crop tractor | |
Zetor built | |
1975 - 1977 | |
|---|---|
Row-Crop tractor | |
Zetor built |
Engine Detail — 285 ci / 4.7 L Diesel
Manufacturer | Zetor |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 285 ci
4.7 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 105 hp
78.3 kW |
Compression | 17:1 |
Rated RPM | 2200 |
Torque | 280 lb-ft
379.7 Nm |
Oil capacity | 10.5 qts
9.9 L |
Coolant capacity | 19 qts
18.0 L |
Transmission
| 1975 - 1977
Row-Crop tractorZetor built |
|---|---|
1975 - 1977 | |
Row-Crop tractor | |
Zetor built | |
1975 - 1977 | |
|---|---|
Row-Crop tractor | |
Zetor built |

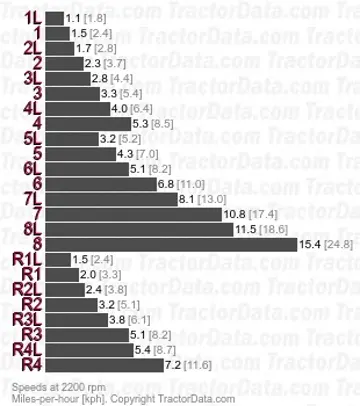

Transmission — 16 forward and 8 reverse partial power shift
Type | partial power shift |
Gears | 16 forward and 8 reverse |
Eight forward, and four reverse, gears with a under-drive power shift. | |
With 16.9x34 rear tires. | |
 | |
Dimensions
| 1975 - 1977
Row-Crop tractorZetor built |
|---|---|
1975 - 1977 | |
Row-Crop tractor | |
Zetor built | |
1975 - 1977 | |
|---|---|
Row-Crop tractor | |
Zetor built |
Long 1100 Tires | |
|---|---|
Ag front | 9.5Lx15 |
Ag rear | 16.9x34 |
Ag front | 23.1x26 |
Ag rear | 18.4x34 |
11Lx15 | |
Dimensions | |
|---|---|
Wheelbase | 92.5 inches
234 cm |
Length | 155 inches
393 cm |
Width | 76 inches
193 cm |
Shipping weight | 8,000 lbs
3628 kg |
Ground clearance | 21 inches
53 cm |
Front tread | 64 to 88 inches
162 to 223 cm |
Rear tread | 59 to 68 inches
149 to 172 cm (manual) |
Rear tread | 64 to 88 inches
162 to 223 cm (power) |
Photos
Long 1100 tractor photo
