Long 1310

The Long 1310 is a tractor produced by Long. It is equipped with a 428 ci 7.0 L engine. The listed engine power is Diesel (listed): 120 hp / 89.5 kW; Diesel (listed): 6 hp / 4.5 kW. Transmission: 16 forward and 8 reverse. Drive type: 4x2 2WD. Operating weight: 9000 lbs 4082 kg.

Overview

	1978 - ???? Row-Crop tractorZetor built
1978 - ????
Row-Crop tractor
Zetor built

1978 - ????
Row-Crop tractor
Zetor built

Production
Distributor	Long
Manufacturer	Zetor
Row-Crop tractor

Variants
1310DT	4WD

Long 1310 Engine
Zetor 7.0L 6-cyl diesel
Engine details ...

Long 1310 Transmission
16-speed two-speed power shift
Transmission details ...

Long 1310 Power
Engine	120 hp 89.5 kW
PTO (claimed)	105 hp 78.3 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (1310DT)
Steering	hydraulic power
Hydraulic disc brakes
Open operator station. Two-post ROPS optional. Cab optional.

Capacity
Fuel	34.6 gal 131.0 L
Steering	7.5 qts 7.1 L

Hydraulics
Valves	1 or 2
Total flow	15 gpm 56.8 lpm
Steering cap.	7.5 qts 7.1 L

Tractor hitch
Rear Type	2
Control	position and depth control
Rear lift	6,600 lbs 2993 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	109 inches 276 cm
Weight	9000 lbs 4082 kg
Front tire	11.5Lx15
Rear tire	18.4x38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
1310/1310-DT Agricultural Tractors published in 1977, by Long

Engine

	1978 - ???? Row-Crop tractorZetor built
1978 - ????
Row-Crop tractor
Zetor built

1978 - ????
Row-Crop tractor
Zetor built

Engine Detail — 428 ci / 7.0 L Diesel

Manufacturer	Zetor
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	428 ci 7.0 L
Bore/Stroke	4.33x4.72 inches 110 x 120 mm
Power	120 hp 89.5 kW
Compression	17:1
Rated RPM	2200
Torque	308 lb-ft 417.6 Nm
Starter volts	12
Starter power	6 hp 4.5 kW
Oil capacity	20.3 qts 19.2 L
Coolant capacity	26.6 qts 25.2 L

Transmission

	1978 - ???? Row-Crop tractorZetor built
1978 - ????
Row-Crop tractor
Zetor built

1978 - ????
Row-Crop tractor
Zetor built

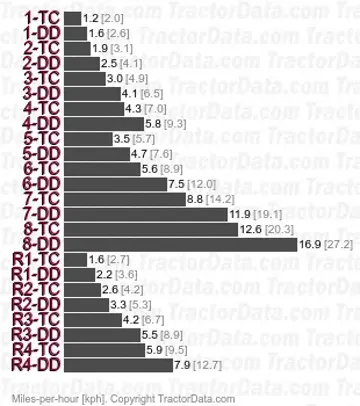

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	13-inch cerametallic dry disc
Oil capacity	48 qts 45.4 L
Eight forward and four reverse gear with torque converter (TC).
With 16.9-34 rear tires.

Dimensions

	1978 - ???? Row-Crop tractorZetor built
1978 - ????
Row-Crop tractor
Zetor built

1978 - ????
Row-Crop tractor
Zetor built

Long 1310 Tires
Standard tires (ag)	Front: 11.5Lx15. Rear: 18.4x38 (2WD)
	Front: 14.9x24. Rear: 18.4x34 (4WD)

Dimensions
Wheelbase	109 inches 276 cm
Length	167.5 inches 425 cm
Width	92.75 inches 235 cm
Shipping weight	9000 lbs 4082 kg
Clearance (front axle)	21 inches 53 cm
Bar rear axle	3.25 inch diameter 82 mm
Front tread	64 to 88 inches 162 to 223 cm (2WD)
Rear tread	62 to 96 inches 157 to 243 cm
Rear tread	62 to 100 inches 157 to 254 cm (PAVT)

Photos

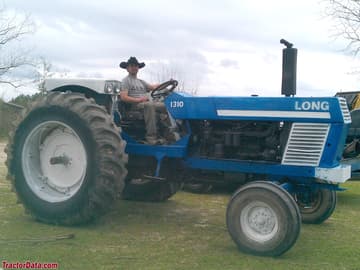

Long 1310
