Long 510
The Long 510 is a tractor produced by Long. It is equipped with a 164.5 ci 2.7 L engine. The rated power output is 49.35 hp 36.8 kW. Transmission: 8 forward and reverse. Operating weight: 4285 to 5265 pounds.
Engine Power
49.35 hp
36.8 kW
Fuel & Capacities
Diesel
Transmission
8 forward and reverse
Operating Weight
4285 to 5265 pounds
Long 510 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1979 - 1990
Utility tractorUTB/Universal built |
|---|---|
1979 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Utility tractor | |
Built in Brasov, Romania | |
Variants | |
|---|---|
510 DTC | 4WD |
Long 510 Engine | |
|---|---|
UTB/Universal 2.7L 3-cyl diesel | |
Engine details ...  |
Long 510 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Long 510 Power | |
|---|---|
Drawbar (claimed) | 42 hp
31.3 kW |
PTO (claimed) | 48.5 hp
36.2 kW |
Drawbar (tested) | 41.75 hp
31.1 kW |
PTO (tested) | 49.35 hp
36.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Mechanical contracting band brakes | |
Two-post ROPS. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Engine RPM | 540@2160 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 76 inches
193 cm |
4WD Wheelbase | 75.2 inches
191 cm |
Weight | 4285 to 5265 pounds |
Front tire | 7.5016 |
Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 1979 - 1990
Utility tractorUTB/Universal built |
|---|---|
1979 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Engine Detail — 164.5 ci / 2.7 L Diesel
Manufacturer | UTB/Universal |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 164.5 ci
2.7 L |
Bore/Stroke | 4.02x4.33 inches
102 x 110 mm |
Compression | 17:1 |
Rated RPM | 2400 |
Idle RPM | 600-2550 |
Firing order | 1-2-3 |
Starter volts | 12 |
Transmission
| 1979 - 1990
Utility tractorUTB/Universal built |
|---|---|
1979 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Clutch | dry disc |
 | |
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
Dimensions
| 1979 - 1990
Utility tractorUTB/Universal built |
|---|---|
1979 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Long 510 Tires | |
|---|---|
Ag front | 7.5016 (2WD) |
9.5-20 (4WD) | |
Ag rear | 14.9-28 |
Dimensions | |
|---|---|
2WD Wheelbase | 76 inches
193 cm |
4WD Wheelbase | 75.2 inches
191 cm |
2WD Front tread | 50.4 to 77.5 inches
128 to 196 cm |
Front tread | 59.5 inches
151 cm (4WD) |
Rear tread | 52.3 to 76.3 inches
132 to 193 cm |
Long 510 Weight | |
|---|---|
Operating | 4,285 lbs (2WD)
1943 kg |
5,265 lbs (4WD)
2388 kg | |
Ballasted | 9,100 lbs
4127 kg |
Tests
| 1979 - 1990
Utility tractorUTB/Universal built |
|---|---|
1979 - 1990 | |
Utility tractor | |
UTB/Universal built | |
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Tractor Tests | |
|---|---|
NTTL 1415: diesel 8-speed 2WD | |
NTTL 1416: diesel 8-speed 4WD |
Nebraska Tractor Test 1415 | |
|---|---|
Diesel 8-speed 2WD
October 29 - November 14, 1981
Link: Nebraska Tractor Test 1415 file | |
PTO performance | |
Power at rated engine speed | 49.15 hp
36.7 kW |
Fuel use | 3.2 gal/hour
12.1 l/hour |
Power at rated PTO speed | 46.91 hp
35.0 kW |
Fuel use | 3.0 gal/hour
11.4 l/hour |
Drawbar performance | |
Max power | 41.75 hp
31.1 kW |
Fuel use | 3.2 gal/hour
12.1 l/hour |
Gear 5 used for power test. | |
Max pull | 6040 lbs
2739 kg |
Gear 2 used for pull test. | |
Nebraska Tractor Test 1416 | |
|---|---|
Diesel 8-speed 4WD
October 29 - November 14, 1981
Link: Nebraska Tractor Test 1416 file | |
PTO performance | |
Power at rated engine speed | 49.35 hp
36.8 kW |
Fuel use | 3.1 gal/hour
11.7 l/hour |
Power at rated PTO speed | 46.41 hp
34.6 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Drawbar performance | |
Max power | 40.01 hp
29.8 kW |
Fuel use | 3.1 gal/hour
11.7 l/hour |
Gear 5 used for power test. | |
Max pull | 5635 lbs
2556 kg |
Gear 2 used for pull test. | |
Photos

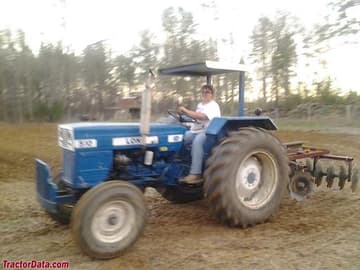

Long 510
