Massey Ferguson 1078

The Massey Ferguson 1078 is a tractor produced by Massey Ferguson. It is equipped with a 305 ci 5.0 L engine. The rated power output is 75 hp 55.9 kW. Transmission: 8 forward and 2 reverse. Operating weight: 10046 lbs 4556 kg.

Overview

	1971 - 1977 Row-Crop tractor
1971 - 1977
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in Granadero Baigorria, Santa Fe, Argentina

Massey Ferguson 1078 Engine
Perkins 5.0L 6-cyl diesel
Engine details ...

Massey Ferguson 1078 Transmission
8-speed gear
Transmission details ...

Massey Ferguson 1078 Power
Engine	75 hp 55.9 kW

Mechanical
Two-wheel drive
Power steering
Disc brakes
Open operator station.

Capacity
Fuel	22.5 gal 85.2 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Capacity	9 gal 34.1 L

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@1680

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	10046 lbs 4556 kg
Front tire	7.50x18
Rear tire	18.4x34
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
Battery volts	12
Battery AH	86

Engine

Engine Detail — 305 ci / 5.0 L Diesel

Manufacturer	Perkins A.6-305
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	305 ci 5.0 L
Bore/Stroke	3.58x5.00 inches 91 x 127 mm
Power	75 hp 55.9 kW
Rated RPM	2000
Starter	electric
Starter volts	12
Oil capacity	14.5 qts 13.7 L
Coolant capacity	15.9 qts 15.0 L

Transmission

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	304.8mm dry disc
Oil capacity	36 qts 34.1 L
Speeds with 18.4x34 rear tires.

Dimensions

Massey Ferguson 1078 Tires
Ag front	7.50x18
Ag rear	18.4x34
Ag front	6.50x15
Ag rear	15.5x38

Dimensions
Wheelbase	92.5 inches 234 cm
Length	144.9 inches 368 cm
Width	86.6 inches 219 cm
Height (steering wheel)	70.9 inches 180 cm
Weight	10046 lbs 4556 kg
Ground clearance	21.7 inches 55 cm

Photos

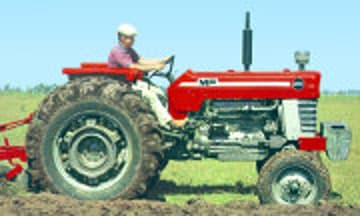

Massey Ferguson 1078 tractor photo
