Massey Ferguson 1135

The Massey Ferguson 1135 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. The listed engine power is 120.84 hp 90.1 kW. Transmission: Multi-Power. Operating weight: 11000 to 13550 pounds.

Engine Power

120.84 hp 90.1 kW

Fuel & Capacities

55 gal 208.2 L

Transmission

Multi-Power

Operating Weight

11000 to 13550 pounds

Overview

	1973 - 1978 Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $31,500 in 1978

Massey Ferguson 1135 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 1135 Transmission
12-speed two-speed power shift
Transmission details ...

Massey Ferguson 1135 Power
Drawbar (claimed)	102 hp 76.1 kW
PTO (claimed)	121 hp 90.2 kW
Drawbar (tested)	102.44 hp 76.4 kW
PTO (tested)	120.84 hp 90.1 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	hydrostatic power
Hydraulic disc brakes
Open operator station. Cab optional with heat and air-conditioning available.

Capacity
Fuel	55 gal 208.2 L
Hydraulic system	22 gal 83.3 L

Hydraulics
Type	closed center
Capacity	22 gal 83.3 L
Pressure	2100 psi 144.8 bar
Valves	1
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II/III
Control	position and draft control
Rear lift	5350 lbs 2426 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	1000 (1.375)
Engine RPM	1000@2000

Dimensions & Tires
Wheelbase	109.1 inches 277 cm
Weight	11000 to 13550 pounds
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Batteries	2
Battery volts	12
Battery AH	96

References

Complete Farm Machinery Guide published in 1976, by Massey Ferguson

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins AT6.354
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Air cleaner	dual dry element
Rated RPM	2200
Starter volts	12
Oil capacity	16 qts 15.1 L
Coolant capacity	22.2 qts 21.0 L

Transmission

Transmission — Multi-Power

Transmission	Multi-Power
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	dry disc
Three gears (1-3), plus reverse (R) in two ranges (low-high), with additional two-speed Multi-Power power shift.
With 18.4x38 rear tires.

Dimensions

Massey Ferguson 1135 Tires
Ag front	11.00-16
Ag rear	18.4-38

Dimensions
Wheelbase	109.1 inches 277 cm
Length	180 inches 457 cm
Height (steering wheel)	79.1 inches 200 cm
Clearance (drawbar)	16.1 inches 40 cm
Rear axle	3.25 by 94 inches 82 by 2387 mm
Rear axle	3.25 by 114 inches 82 by 2895 mm (long axle)
Front tread	61.4 to 86.4 inches 155 to 219 cm (row-crop)
Front tread	61.6 inches 156 cm (western)
Rear tread	70 to 94 inches 177 to 238 cm
Rear tread	60 to 100 inches 152 to 254 cm (power)
Rear tread	70 to 114 inches 177 to 289 cm (long axle)
Rear tread	60 to 120 inches 152 to 304 cm (long axle power)

Massey Ferguson 1135 Weight
Shipping	11000 lbs 4989 kg
	12250 lbs (cab) 5556 kg
Operating	13550 lbs 6146 kg
Ballasted	18900 lbs 8573 kg

Tests

Nebraska Tractor Test 1135
Diesel 12-speed 2WD June 4 - 15, 1973 Link: Nebraska Tractor Test 1135 file
PTO performance
Power at rated engine speed	120.84 hp 90.1 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Power at rated PTO speed	118.47 hp 88.3 kW
Fuel use	7.3 gal/hour 27.6 l/hour
Drawbar performance
Max power	102.44 hp 76.4 kW
Fuel use	7.7 gal/hour 29.1 l/hour
Gear 3L-Low used for power test.
Max pull	13,955 lbs 6329 kg
Gear 1L-Hi used for pull test.

Attachments

Attachment overview
Massey Ferguson 245 loader
Massey Ferguson 245 High Lift loader

Photos

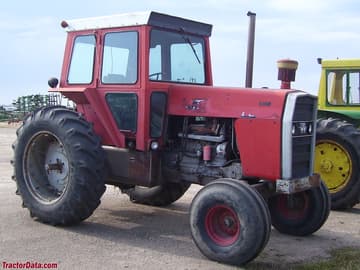

Massey Ferguson 1135.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1135 based on its 120.84 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1135.

Estimated Continuous Field Runtime: 8.8 hrs

Approximately 8.8 hours of continuous field operation at ~75% rated power on a full tank (55 gal / 208.2 L).

Estimated 75% Load Fuel Burn~6.3 gal/hr (23.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
