Massey Ferguson 2680 HD

The Massey Ferguson 2680 HD is a tractor produced by Massey Ferguson. It is equipped with a 269 ci 4.4 L engine. The listed engine power is Diesel (gross): 97 hp / 72.3 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6812 to 8505 pounds.

Engine Power

Diesel (gross): 97 hp / 72.3 kW

Fuel & Capacities

26.5 gal 100.3 L

Transmission

12 forward and 4 reverse

Operating Weight

6812 to 8505 pounds

Overview

	2010 - 2013 2600 HD SeriesUtility tractor 2600 HD Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Brazil
Original price	$38,288 (2012 8-speed ROPS 2WD )
	$43,587 (2012 8-speed ROPS 4WD )
	$44,810 (2012 8-speed Cab 4WD )
	$52,632 (2012 8-speed Cab 4WD )
	$37,582 (2012 12-speed ROPS 2WD )
	$42,917 (2012 12-speed ROPS 4WD )
	$47,156 (2012 12-speed Cab 2WD )
	$51,963 (2012 12-speed Cab 4WD )

Variants
2680HD	utility
2680LP	low-profile
2680HC	high-crop

Massey Ferguson 2680 HD Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	26.5 gal 100.3 L
Engine details ...

Massey Ferguson 2680 HD Power
Engine (gross)	97 hp 72.3 kW
PTO (claimed)	83 hp 61.9 kW
PTO (tested)	88.15 hp 65.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	outboard planetary
Differential lock	mechanical rear lock standard
Power steering
Hydraulic wet disc brakes
Flat platform with two-post folding ROPS. Cab optional with air-condioning.

Hydraulics
Type	open center
Valves	1 to 3
Pump flow	7.0 gpm (3-point) 26.5 lpm
	10 gpm (aux pump) 37.9 lpm
SCV flow	17 gpm 64.3 lpm
Total flow	25 gpm 94.6 lpm
Steering flow	8 gpm 30.3 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	3,682 lbs 1670 kg
Drawbar	swinging drawbar with hammer strap

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	540
	540/1000 (optional)

Dimensions & Tires
Wheelbase	90 inches 228 cm
Weight	6812 to 8505 pounds
Front tire	10.00-16
Rear tire	18.4-30 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55
Cab Charging amps	90
Battery CCA	750
Battery volts	12

References

New HD Series 2600 High Clearance tractors published in 2011, by Massey Ferguson
HD Series 2600 published in 2012, by Massey Ferguson

Engine

Engine Detail — 269 ci / 4.4 L Diesel

Manufacturer	Perkins 1104D-44T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	269 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier III
Power (gross)	97 hp 72.3 kW
Pre-heating	glow plugs
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission options
8-speed synchronized shuttle
12-speed partially synchronized

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	single dry disc
Four gears with high and low ranges. Synchronized gears and forward/reverse.

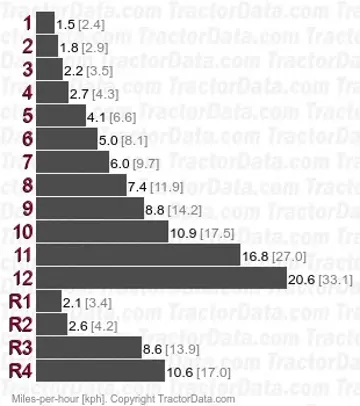

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	single dry disc
Synchronized between gears 2-3 and between slow-fast ranges.

Dimensions

Massey Ferguson 2680 HD Tires
Standard tires (ag)	Front: 10.00-16. Rear: 18.4-30 (2WD)
	Front: 13.6-24. Rear: 18.4-30 (4WD)
	Front: 320/85R34. Rear: 320/90R50 (High-Crop)
Optional tires (ag)	Front: 10.00-16. Rear: 18.4-34 (2WD)
	Front: 10.00-16. Rear: 13.6-38 (2WD)
	Front: 10.00-16SL. Rear: 15.5-38 (2WD)
	Front: 14.9-24. Rear: 18.4-34 (4WD)
	Front: 13.6-24. Rear: 13.6-38 (4WD)
	Front: 11.2-28. Rear: 15.5-38 (4WD)

Dimensions
Wheelbase	90 inches 228 cm
Length	155 inches 393 cm
Width	83.7 inches 212 cm
Ground clearance	21.9 inches (High-Crop) 55 cm
Clearance (drawbar)	16.3 inches 41 cm

Massey Ferguson 2680 HD Weight
Shipping	6,812 lbs (2WD ROPS) 3089 kg
	7,275 lbs (4WD ROPS) 3299 kg
	7,562 lbs (2WD cab) 3430 kg
	8,025 lbs (4WD cab) 3640 kg
4WD Cab Operating	8,505 lbs 3857 kg

Massey Ferguson 2680 HD Height
	112.1 inches (High-Crop) 284 cm
ROPS	103.1 inches 261 cm
Cab	106.5 inches 270 cm

Tests

Nebraska Tractor Test 1978
Diesel 12-speed 4WD 6/24/2010 Link: Nebraska Tractor Test 1978 file
PTO performance
Max power	88.15 hp 65.7 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Power at rated engine speed	86.06 hp 64.2 kW
Fuel use	5.5 gal/hour 20.8 l/hour
Power at rated PTO speed	87.82 hp 65.5 kW
Fuel use	5.1 gal/hour 19.3 l/hour

Attachments

Attachment overview
Massey Ferguson DL260 loader
Massey Ferguson DL280 loader

Photos

Ridgeview New Holland

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 2680 HD based on its 97 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 2680 HD.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (26.5 gal / 100.3 L).

Estimated 75% Load Fuel Burn~5 gal/hr (19.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
