Massey Ferguson 1155

The Massey Ferguson 1155 is a tractor produced by Massey Ferguson. It is equipped with a 540 ci 8.9 L engine. The rated power output is 140.97 hp 105.1 kW. Transmission: Multi-Power. Operating weight: 11750 to 14905 pounds.

Overview

	1973 - 1978 Row-Crop tractor
1973 - 1978
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $25,000 in 1978

Massey Ferguson 1155 Engine
Perkins 8.9L 8-cyl diesel
Engine details ...

Massey Ferguson 1155 Power
Drawbar (claimed)	117 hp 87.2 kW
PTO (claimed)	140 hp 104.4 kW
Drawbar (tested)	117.8 hp 87.8 kW
PTO (tested)	140.97 hp 105.1 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	55 gal 208.2 L
Hydraulic system	22 gal 83.3 L

Hydraulics
Type	closed center
Capacity	22 gal 83.3 L
Pressure	2100 psi 144.8 bar
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II/III
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2000
	1000@2000

Dimensions & Tires
Wheelbase	109 inches 276 cm
Weight	11750 to 14905 pounds
Front tire	14L-16
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

References
Complete Farm Machinery Guide published in 1976, by Massey Ferguson

Engine

Engine Detail — 540 ci / 8.9 L Diesel

Manufacturer	Perkins AV8.540
Fuel Type	Diesel
Configuration	8-cylinder, liquid-cooled
Displacement	540 ci 8.9 L
Bore/Stroke	4.25x4.75 inches 108 x 121 mm
Fuel system	direct injection
Air cleaner	dry
Compression	17.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	50 qts 47.3 L

Transmission

Transmission options
12-speed two-speed power shift
8-speed gear

Transmission — Multi-Power

Transmission	Multi-Power
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	356mm dry disc

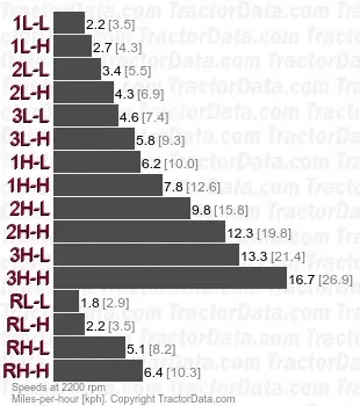

Three gears (1-3), plus reverse (R) in two ranges (low-high), with additional two-speed Multi-Power power shift.
With 18.4x38 rear tires.

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	35.6mm dry disc
With 18.4x38 rear tires.

Dimensions

Massey Ferguson 1155 Tires
Ag front	14L-16
Ag rear	18.4-38

Dimensions
Wheelbase	109 inches 276 cm
Length	180 inches 457 cm
Clearance (front axle)	26.3 inches 66 cm
Clearance (drawbar)	16.1 inches 40 cm
Rear axle	3.25 by 94 inches 82 by 2387 mm
Rear axle	3.25 by 114 inches 82 by 2895 mm (long axle)
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 120 inches 152 to 304 cm

Massey Ferguson 1155 Weight
Shipping	11750 lbs 5329 kg
	13000 lbs (cab) 5896 kg
Operating	14905 lbs*With 18.4-38 duals. 6760 kg
Ballasted	20460 lbs 9280 kg

Massey Ferguson 1155 Height
Steering wheel	79 inches 200 cm
Hood	77.6 inches 197 cm
Cab	113.5 inches 288 cm

Tests

Nebraska Tractor Test 1134
Diesel 12-speed 2WD June 5 - 15, 1973 Link: Nebraska Tractor Test 1134 file
PTO performance
Power at rated engine speed	140.97 hp 105.1 kW
Fuel use	9.1 gal/hour 34.4 l/hour
Power at rated PTO speed	134.11 hp 100.0 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Drawbar performance
Max power	117.8 hp 87.8 kW
Fuel use	9.0 gal/hour 34.1 l/hour
Gear 5 used for power test.
Max pull	15630 lbs 7089 kg
Gear 1L MP-High used for pull test.

Attachments

Attachment overview
Massey Ferguson 245 loader
Massey Ferguson 245 High Lift loader

Photos

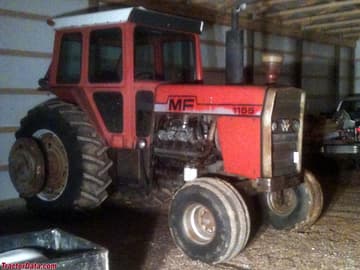

Massey Ferguson 1155

Massey Ferguson 1155

1976 Massey Ferguson 1155 Spirit of America.
