Massey Ferguson 220

The Massey Ferguson 220 is a tractor produced by Massey Ferguson. It is equipped with a 90.3 ci 1.5 L engine. The rated power output is 31 hp 23.1 kW. Transmission: 12 forward and 3 reverse. Operating weight: 2600 to 3180 pounds.

Overview

	1978 - 1984 Compact Utility tractorToyosha built
1978 - 1984
Compact Utility tractor
Toyosha built

1978 - 1984
Compact Utility tractor
Toyosha built

Production
Distributor	Massey Ferguson
Manufacturer	Toyosha
Compact Utility tractor
Built in Osaka, Japan
Original price was $8,500 in 1984

Variants
220	2WD
220-4	4WD

Massey Ferguson 220 Engine
Toyosha 1.5L 2-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Massey Ferguson 220 Transmission
12-speed gear
Transmission details ...

Massey Ferguson 220 Power
Engine	31 hp 23.1 kW
PTO (claimed)	26 hp 19.4 kW
Drawbar (tested)	22.73 hp 16.9 kW
PTO (tested)	26.48 hp 19.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Manual steering
Mechanical drum brakes
Open operator station. Two-post fixed ROPS available.

Hydraulics
Type	open center
Pressure	1700 psi 117.2 bar
Pump flow	5.4 gpm 20.4 lpm

Tractor hitch
Rear Type	I
Control	position control

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	540
Engine RPM	540@2327
Front PTO	independent OptOptional
Clutch	electro-magnetic

Dimensions & Tires
2WD Wheelbase	61.6 inches 156 cm
4WD Wheelbase	62.6 inches 159 cm
Weight	2600 to 3180 pounds
Front tire	5.00-15
2WD Rear tire	12.4/11-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12

References
Industrial Machinery Buyer's Guide published in 1980, by Massey Ferguson
Compact Tractor Attachment published in 1982, by Massey Ferguson
Loaders and Spreaders published in 1979, by Massey Ferguson
MF Compact Tractors published in 1979, by Massey Ferguson

Engine

	1978 - 1984 Compact Utility tractorToyosha built
1978 - 1984
Compact Utility tractor
Toyosha built

1978 - 1984
Compact Utility tractor
Toyosha built

Engine Detail — 90.3 ci / 1.5 L Diesel

Manufacturer	Toyosha S148
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	90.3 ci 1.5 L
Bore/Stroke	3.82x3.94 inches 97 x 100 mm
Power	31 hp 23.1 kW
Fuel system	indirect injection
Air cleaner	paper element
Pre-heating	glow plugs
Compression	23:1
Rated RPM	2500
Torque	67.3 lb-ft 91.3 Nm
Torque RPM	1700
Starter volts	12
Oil capacity	4.2 qts 4.0 L
Coolant capacity	5.3 qts 5.0 L

Transmission

	1978 - 1984 Compact Utility tractorToyosha built
1978 - 1984
Compact Utility tractor
Toyosha built

1978 - 1984
Compact Utility tractor
Toyosha built

Transmission — 12 forward and 3 reverse gear

Type	gear
Gears	12 forward and 3 reverse
Clutch	215mm mechanical dry disc
2WD Oil capacity	22.2 qts 21.0 L
4WD Oil capacity	28.5 qts 27.0 L

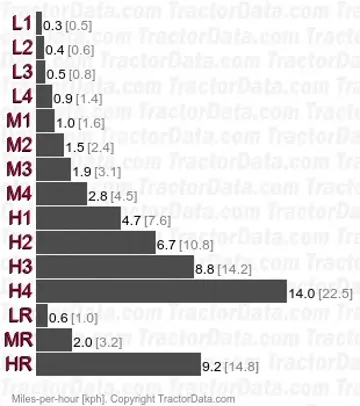

Four gears (1-4), plus reverse (R), in three ranges (low, medium, and high).

Dimensions

	1978 - 1984 Compact Utility tractorToyosha built
1978 - 1984
Compact Utility tractor
Toyosha built

1978 - 1984
Compact Utility tractor
Toyosha built

Massey Ferguson 220 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 12.4/11-24
4WD Standard tires (ag)	Front: 7.00-16. Rear: 12.4/11-24
Lawn/turf front	20x8.00-10
Lawn/turf rear	13.6-16

Dimensions
2WD Wheelbase	61.6 inches 156 cm
4WD Wheelbase	62.6 inches 159 cm
2WD Width	53.7 inches 136 cm
4WD Width	53.5 inches 135 cm
2WD Height (steering wheel)	53.9 inches 136 cm
4WD Height (steering wheel)	58.5 inches 148 cm
2WD Front tread	40.9 to 51.2 inches 103 to 130 cm
2WD Front tread	44.9 inches 114 cm
Rear tread	40.9 to 62.5 inches 103 to 158 cm

Massey Ferguson 220 Weight
2WD Shipping	2600 lbs 1179 kg
4WD Shipping	3125 lbs 1417 kg
2WD Operating	2765 lbs 1254 kg
4WD Operating	3180 lbs 1442 kg
Ballasted	4487 lbs 2035 kg

Tests

	1978 - 1984 Compact Utility tractorToyosha built
1978 - 1984
Compact Utility tractor
Toyosha built

1978 - 1984
Compact Utility tractor
Toyosha built

Tractor Tests
NTTL 1367: diesel 12-speed 2WD
NTTL 1368: diesel 12-speed 4WD

Nebraska Tractor Test 1367
Diesel 12-speed 2WD September 15 - 26, 1980 Link: Nebraska Tractor Test 1367 file
PTO performance
Power at rated engine speed	26.37 hp 19.7 kW
Fuel use	2.1 gal/hour 7.9 l/hour
Power at rated PTO speed	25.52 hp 19.0 kW
Fuel use	1.9 gal/hour 7.2 l/hour
Drawbar performance
Max power	22.73 hp 16.9 kW
Fuel use	2.0 gal/hour 7.6 l/hour
Gear 9 used for power test.
Max pull	3,287 lbs 1490 kg

Nebraska Tractor Test 1368
Diesel 12-speed 4WD September 18 - October 7, 1980 Link: Nebraska Tractor Test 1368 file
PTO performance
Power at rated engine speed	26.48 hp 19.7 kW
Fuel use	1.9 gal/hour 7.2 l/hour
Power at rated PTO speed	26.06 hp 19.4 kW
Fuel use	1.8 gal/hour 6.8 l/hour
Drawbar performance
Max power	21.45 hp 16.0 kW
Fuel use	1.9 gal/hour 7.2 l/hour
Gear 9 used for power test.
Max pull	3,496 lbs 1585 kg

Attachments

	1978 - 1984 Compact Utility tractorToyosha built
1978 - 1984
Compact Utility tractor
Toyosha built

1978 - 1984
Compact Utility tractor
Toyosha built

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck
Front-end loader
The Woods mid-mount mowers were not capatible with the four-wheel drive 220.

Photos

Massey Ferguson 220-4.

Massey Ferguson 220-4 engine.

Massey Ferguson 220-4 with model 216 front-end loader.

Massey Ferguson 220-4 with model 216 front-end loader.
