Steyr 180
The Steyr 180 is a tractor produced by Steyr. It is equipped with a 162.4 ci 2.7 L engine. The listed engine power is Diesel (net): 25.6 hp / 19.1 kW. Transmission: 5 forward and 1 reverse. Operating weight: 3968 lbs 1799 kg.
Engine Power
Diesel (net): 25.6 hp / 19.1 kW
Fuel & Capacities
11.6 gal
43.9 L
Transmission
5 forward and 1 reverse
Operating Weight
3968 lbs
1799 kg
Overview
 | 1947 - 1953
Model year 1947-19511951-1953
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Steyr |
Standard-tread tractor | |
Steyr 180 Engine | |
|---|---|
Steyr 2.7L 2-cyl diesel | |
Fuel tank | 11.6 gal
43.9 L |
Engine details ...  | |
Steyr 180 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Steyr 180 Power | |
|---|---|
Engine (net) | 25.6 hp
19.1 kW |
PTO (claimed) | 21.7 hp
16.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Engine RPM | 540@1420 |
Dimensions & Tires | |
|---|---|
Wheelbase | 65.4 inches
166 cm |
Weight | 3968 lbs
1799 kg |
Front tire | 5.00-16 |
Rear tire | 9.00-24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 162.4 ci / 2.7 L Diesel
Manufacturer | Steyr WD 213 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 162.4 ci
2.7 L |
Bore/Stroke | 4.33x5.51 inches
110 x 140 mm |
Power (net) | 25.6 hp
19.1 kW |
Rated RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 10.6 qts
10.0 L |
Coolant capacity | 13.7 qts
13.0 L |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Steyr 180 Tires | |
|---|---|
Ag front | 5.00-16 |
Ag rear | 9.00-24 |
Ag front | 5.25-16 |
5.50-16 | |
Ag rear | 10-24 |
11-24 | |
Dimensions | |
|---|---|
Wheelbase | 65.4 inches
166 cm |
Length | 111 inches
281 cm |
Width | 59.7 inches
151 cm |
Height | 69.7 inches
177 cm |
Weight | 3968 lbs
1799 kg |
Max weight | 5071 lbs
2300 kg |
Ground clearance | 10.6 inches
26 cm |
Front tread | 49.2 inches
124 cm |
Rear tread | 49.2 inches
124 cm |
Photos

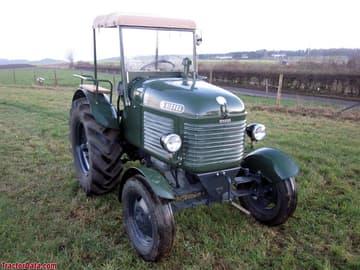

Steyr 180

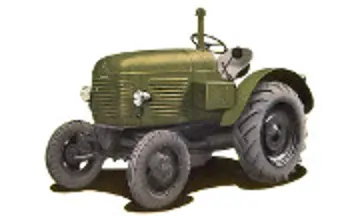

Steyr 180
Recommended Implements & Sizing Guide
Engineering recommendations for Steyr 180 based on its 25.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 180.
Estimated Continuous Field Runtime: 8.7 hrs
Approximately 8.7 hours of continuous field operation at ~75% rated power on a full tank (11.6 gal / 43.9 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Steyr 180 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Steyr 180.
Converted Equivalents:
Horsepower (HP)25.6 hp
Kilowatts (kW)19.1 kW
Metric Horsepower (PS / CV)26 PS
Direct Competitor Comparison
Compare Steyr 180 against same-era industry alternatives in the same horsepower class.
Current Model
Steyr
Steyr 180
Engine Power:Diesel (net): 25.6 hp / 19.1 kW
★ Baseline Reference
