Massey Ferguson 194

The Massey Ferguson 194 is a tractor produced by Massey Ferguson. It is equipped with a 248 ci 4.1 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6041 to 6570 pounds.

Engine Power

Diesel (listed): 75 hp / 55.9 kW

Fuel & Capacities

16 gal 60.6 L

Transmission

12 forward and 4 reverse

Operating Weight

6041 to 6570 pounds

Overview

	1977 - 1983 104 SeriesUtility tractorLandini built 104 Series Utility tractor Landini built

Production
Distributor	Massey Ferguson
Manufacturer	Landini
Utility tractor
Built in Italy

Variants
194	2WD
194-4	4WD
8500	similar Landini model

Massey Ferguson 194 Engine
Perkins 4.1L 4-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Massey Ferguson 194 Transmission
12-speed partially synchronized
Transmission details ...

Massey Ferguson 194 Power
Engine	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Dry disc brakes
Open operator station. Cab optional.

Hydraulics
Type	open center
Pressure	2418 psi 166.7 bar
Total flow	7.5 gpm 28.4 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at ends)	5842 lbs 2649 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional
Engine RPM	540@1944
	1000@1916

Dimensions & Tires
2WD Wheelbase	90.6 inches 230 cm
4WD Wheelbase	89.4 inches 227 cm
Weight	6041 to 6570 pounds
Front tire	7.50-20
2WD Rear tire	18.4/15-30
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
Operator Instruction Book 154 - 174 - 184 - 194 (3300912M2)*
MF 194-4 4-Wheel Drive Tractor published in 1977, by Massey Ferguson
*Publication contains known errors.

Engine

Engine Detail — 248 ci / 4.1 L Diesel

Manufacturer	Perkins A4.248
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	248 ci 4.1 L
Bore/Stroke	3.975x5.00 inches 101 x 127 mm
Power	75 hp 55.9 kW
Fuel system	direct injection
Compression	16:1
Rated RPM	2100
Idle RPM	650-22600
Torque	206.5 lb-ft 280.0 Nm
Torque RPM	1380
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Coolant capacity	15.9 qts 15.0 L

Transmission

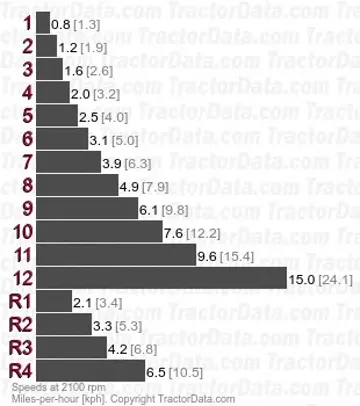

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	279.4mm dry disc
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.

Dimensions

Massey Ferguson 194 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 18.4/15-30
4WD Standard tires (ag)	Front: 12.4/11-24. Rear: 18.4/15-30
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9/14-30
2WD Optional tires (ag)	Front: 7.50-20. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 7.50-20. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 11.2/10-24. Rear: 16.9/14-30
4WD Optional tires (ag)	Front: 12.4/11-24. Rear: 16.9/14-34
4WD Optional tires (ag)	Front: 12.4/11-24. Rear: 13.6/12-38

Dimensions
2WD Wheelbase	90.6 inches 230 cm
4WD Wheelbase	89.4 inches 227 cm
2WD Length	146.7 inches 372 cm
4WD Length	150.8 inches 383 cm
Width	69.7 inches*Minimum width 177 cm
2WD Weight	6041 lbs 2740 kg
4WD Weight	6570 lbs 2980 kg
2WD Clearance (front axle)	22.1 inches 56 cm
4WD Clearance (front axle)	16.5 inches 41 cm
2WD Front tread	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread	61.2 inches 155 cm
Rear tread	51.2 to 79.7 inches 130 to 202 cm

Massey Ferguson 194 Height
Steering wheel	65.5 inches 166 cm
Hood	57.3 inches 145 cm
ROPS	92.9 inches 235 cm

Photos

Massey Ferguson 194 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 194 based on its 75 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 194.

Estimated Continuous Field Runtime: 4.1 hrs

Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (16 gal / 60.6 L).

Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
