Massey Ferguson 294S

The Massey Ferguson 294S is a tractor produced by Massey Ferguson. It is equipped with a 248 ci 4.1 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: 12 forward and 4 reverse. Operating weight: 7144 to 7387 pounds.

Engine Power

Diesel (listed): 75 hp / 55.9 kW

Fuel & Capacities

31.7 gal 120.0 L

Transmission

12 forward and 4 reverse

Operating Weight

7144 to 7387 pounds

Overview

	1983 - 1987 Landini built

Production
Distributor	Massey Ferguson
Manufacturer	Landini

Massey Ferguson 294S Engine
Perkins 4.1L 4-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

Massey Ferguson 294S Transmission
12-speed
Transmission details ...

Massey Ferguson 294S Power
Engine	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Cab optional.

Hydraulics
Total flow	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type	II
Rear lift	6616 lbs 3001 kg
	7940 lbs*With second lift cylinder. 3601 kg

Power Take-off (PTO)
Rear PTO Type	540/1000/ground

Dimensions & Tires
Wheelbase	95.3 inches 242 cm
Weight	7144 to 7387 pounds
Front tire	7.50-20
Rear tire	16.9-34
Full dimensions and tires ...

Engine

Engine Detail — 248 ci / 4.1 L Diesel

Manufacturer	Perkins A4.248
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	248 ci 4.1 L
Bore/Stroke	3.975x5.00 inches 101 x 127 mm
Power	75 hp 55.9 kW
Rated RPM	2200
Torque	204.3 lb-ft 277.0 Nm
Torque RPM	1380

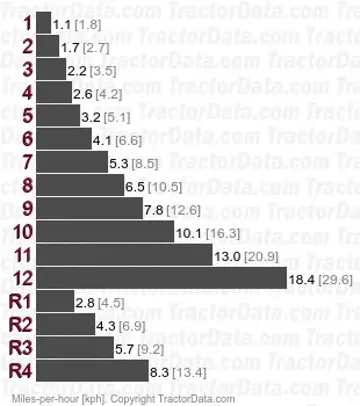

Transmission

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse

Dimensions

Massey Ferguson 294S Tires
Ag front	7.50-20
Ag rear	16.9-34
Ag front	12.4-24
Ag rear	16.9-34

Dimensions
Wheelbase	95.3 inches 242 cm
Length	159.1 inches 404 cm
Height	100.8 inches 256 cm
2WD Weight	7144 lbs 3240 kg
4WD Weight	7387 lbs 3350 kg

Photos

Massey Ferguson 294S tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 294S based on its 75 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 294S.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).

Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
