Massey Ferguson 3090

The Massey Ferguson 3090 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. The rated power output is 107 hp 79.8 kW. Transmission: SpeedShift. Operating weight: 10329 to 10869 pounds.

Overview

	1986 - 1990 3000 SeriesRow-Crop tractor
1986 - 1990
3000 Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $41,000 in 1990

Massey Ferguson 3090 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 3090 Power
Engine	107 hp 79.8 kW
PTO (claimed)	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning

Capacity
Fuel	50 gal 189.2 L
Hydraulic system	15.9 gal 60.2 L

Hydraulics
Type	open center
Capacity	15.9 gal 60.2 L
Pressure	2610 psi 180.0 bar
Valves	2 to 4
Pump flow	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type	II
Control	position control and lower-link draft sensing
Rear lift (at ends)	10617 lbs 4815 kg
Rear lift (at 24"/610mm)	6900 lbs 3129 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	106.1 inches 269 cm
4WD Wheelbase	106.3 inches 270 cm
Weight	10329 to 10869 pounds
Front tire	11.00-16
Rear tire	18.4-38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Batteries	2
Battery volts	12

References
Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
MF 3000 Product Information Manual (0783/0986) published in 1986*
*Publication contains known errors.

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins A6.354-4
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Power	107 hp 79.8 kW
Rated RPM	2200
Torque	279 lb-ft 378.3 Nm
Torque RPM	1400
Starter volts	12

Transmission

Transmission options
16-speed fully synchronized
32-speed two-speed power shift

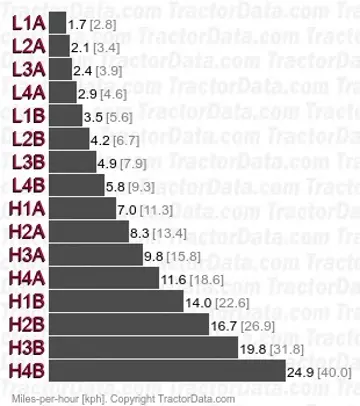

Transmission — 16 forward and reverse fully synchronized

Type	fully synchronized
Gears	16 forward and reverse
Clutch	hydraulic cerametallic disc
With 16.9/14-38 rear tires.

Transmission — SpeedShift

Transmission	SpeedShift
Type	two-speed power shift
Gears	32 forward and reverse

Dimensions

Massey Ferguson 3090 Tires
Standard tires (ag)	Front: 11.00-16. Rear: 18.4-38 (2WD)
	Front: 13.6-28. Rear: 18.4-38 (4WD)

Dimensions
2WD Wheelbase	106.1 inches 269 cm
4WD Wheelbase	106.3 inches 270 cm
Length	170 inches (2WD) 431 cm
	177 inches (4WD) 449 cm
Width	78.2 inches 198 cm
2WD Weight	10329 lbs 4685 kg
4WD Weight	10869 lbs 4930 kg
2WD Clearance (front axle)	28.1 inches 71 cm
4WD Clearance (front axle)	19.5 inches 49 cm
Clearance (drawbar)	18 inches 45 cm
2WD Front tread	60.7 to 91.9 inches 154 to 233 cm
4WD Front tread	62.3 to 81.6 inches 158 to 207 cm
Rear tread	60.6 to 84.5 inches 153 to 214 cm

Massey Ferguson 3090 Height
2WD Steering wheel	84.7 inches 215 cm
4WD Steering wheel	82.3 inches 209 cm
Cab	119.6 inches 303 cm
Exhaust	110.7 inches 281 cm

Photos

Massey Ferguson 3090 tractor photo
