Massey Ferguson 3125

The Massey Ferguson 3125 is a tractor produced by Massey Ferguson. It is equipped with a 365 ci 6.0 L engine. The listed engine power is Diesel (listed): 123.4 hp / 92.0 kW. Transmission: Dynashift. Operating weight: 11486 lbs 5210 kg.

Engine Power

Diesel (listed): 123.4 hp / 92.0 kW

Fuel & Capacities

50.2 gal 190.0 L

Transmission

Dynashift

Operating Weight

11486 lbs 5210 kg

Overview

	1990 - 1995 3100 SeriesRow-Crop tractor 3100 Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in Beauvais, France

Massey Ferguson 3125 Engine
Perkins 6.0L 6-cyl diesel
Engine details ...

Massey Ferguson 3125 Power
Engine	123.4 hp 92.0 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	50.2 gal 190.0 L
Hydraulic system	15.9 gal 60.2 L

Hydraulics
Capacity	15.9 gal 60.2 L
Pressure	2610 psi 180.0 bar
Pump flow	13.21 gpm (early) 50.0 lpm
	13.74 gpm (late) 52.0 lpm

Tractor hitch
Rear Type	II
Rear lift	14330 lbs 6500 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1997
	1000@2000

Dimensions & Tires
Wheelbase	106.3 inches 270 cm
Weight	11486 lbs 5210 kg
Front tire	14.9R28
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

3100/3600 series published in 1991, by Massey Ferguson
3125 published in 1998, by Massey Ferguson
Perkins 1000 Series with Quadram Power published in 1990, by Massey Ferguson

Engine

Engine Detail — 365 ci / 6.0 L Diesel

Manufacturer	Perkins Quadram 1000
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	365 ci 6.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Power	123.4 hp 92.0 kW
Fuel system	direct injection
Rated RPM	2200
Torque	349.6 lb-ft 474.1 Nm
Torque RPM	1200
Starter	electric
Starter volts	12

Massey Ferguson 3125 Engine

Transmission

Transmission options
16-speed
32-speed four-speed power shift

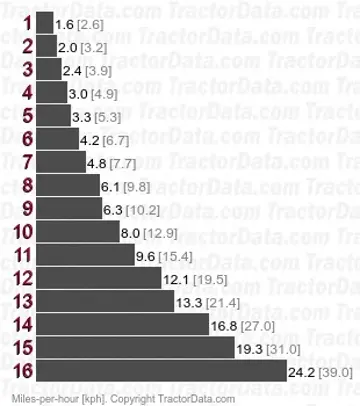

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Clutch	330mm cerametallic disc
With 18.4-38 rear tires.

Transmission — Dynashift

Transmission	Dynashift
Type	four-speed power shift
Gears	32 forward and reverse
The Dynashift became available on the 3125 beginning in 1992.

Dimensions

Massey Ferguson 3125 Tires
Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Dimensions
Wheelbase	106.3 inches 270 cm
Length	180.5 inches 458 cm
Width	78.2 inches 198 cm
Height (cab)	115.6 inches 293 cm
Weight	11486 lbs 5210 kg
Front tread	67.1 to 86.3 inches 170 to 219 cm
Rear tread	61.4 to 89.4 inches 155 to 227 cm

Photos

Massey Ferguson 3125 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 3125 based on its 123.4 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 3125.

Estimated Continuous Field Runtime: 7.8 hrs

Approximately 7.8 hours of continuous field operation at ~75% rated power on a full tank (50.2 gal / 190 L).

Estimated 75% Load Fuel Burn~6.4 gal/hr (24.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
