Massey Ferguson 397
The Massey Ferguson 397 is a tractor produced by Massey Ferguson. It is equipped with a 248.0 ci 4.1 L engine. The listed engine power is Engine Detail — 248.0 ci / 4.1 L (listed): 80 hp / 59.7 kW. Transmission: 24 forward and 12 reverse. Operating weight: 8,026 lbs 3640 kg.
Engine Power
Engine Detail — 248.0 ci / 4.1 L (listed): 80 hp / 59.7 kW
Fuel & Capacities
26.9 gal
101.8 L
Transmission
24 forward and 12 reverse
Operating Weight
8,026 lbs
3640 kg
Overview
 | 1987 - 1994 |
|---|
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Massey Ferguson 397 Engine | |
|---|---|
Perkins 4.1L 4-cyl | |
Fuel tank | 26.9 gal
101.8 L |
Engine details ...  | |
Massey Ferguson 397 Transmission | |
|---|---|
24-speed | |
Transmission details ...  |
Massey Ferguson 397 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
standard | |
Hydraulics | |
|---|---|
Total flow | 9.8 gpm
37.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 6,614 lbs
3000 kg |
8,047 lbs
3650 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000/ground |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.3 inches
242 cm |
Weight | 8,026 lbs
3640 kg |
Front tire | 13.6-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 248.0 ci / 4.1 L
Manufacturer | Perkins A4.248 |
Configuration | 4-cylinder |
Displacement | 248.0 ci
4.1 L |
Bore/Stroke | 3.975x5.00 inches
101 x 127 mm |
Power | 80 hp
59.7 kW |
Rated RPM | 2200 |
Torque | 208.7 lb-ft
283.0 Nm |
Torque RPM | 1400 |
Transmission
Transmission — 24 forward and 12 reverse
Gears | 24 forward and 12 reverse |
Dimensions
Massey Ferguson 397 Tires | |
|---|---|
Ag front | 13.6-24 |
Ag rear | 16.9-34 |
Dimensions | |
|---|---|
Wheelbase | 95.3 inches
242 cm |
Length | 151.6 inches
385 cm |
Height | 105.1 inches
266 cm |
Weight | 8,026 lbs
3640 kg |
Photos

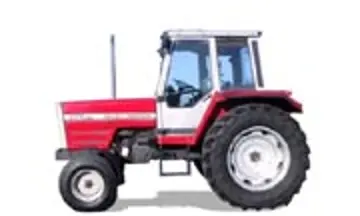

Massey Ferguson 397 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Massey Ferguson 397 based on its 80 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 397.
Estimated Continuous Field Runtime: 6.5 hrs
Approximately 6.5 hours of continuous field operation at ~75% rated power on a full tank (26.9 gal / 101.8 L).
Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Massey Ferguson 397 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson 397.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
Direct Competitor Comparison
Compare Massey Ferguson 397 against same-era industry alternatives in the same horsepower class.
Current Model
Massey Ferguson
Massey Ferguson 397
Engine Power:Engine Detail — 248.0 ci / 4.1 L (listed): 80 hp / 59.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 744
Engine Power:72
Production Years:1974 - 1980
