Massey Ferguson 4355

The Massey Ferguson 4355 is a tractor produced by Massey Ferguson. It is equipped with a 243.5 ci 4.0 L engine. The rated power output is 94 hp 70.1 kW. Transmission: 24 forward and reverse. Operating weight: 6211 to 8430 pounds.

Overview

	2001 - 2003 4300 SeriesUtility tractor
2001 - 2003
4300 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Coventry, England

Massey Ferguson 4355 Engine
Perkins 4.0L 4-cyl diesel
Cab Fuel tank	33.6 gal 127.2 L
ROPS Fuel tank	34.3 gal 129.8 L
Cab Fuel tank	50 galOptOptional 189.2 L
ROPS Fuel tank	52.8 galOptOptional 199.8 L
Engine details ...

Massey Ferguson 4355 Power
Engine (gross)	100 hp 74.6 kW
Engine (net)	94 hp 70.1 kW
PTO (claimed)	85 hp 63.4 kW
Drawbar (tested)	65.6 hp 48.9 kW
PTO (tested)	84.1 hp 62.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pressure	3046 psi 210.0 bar
Valves	2 to 4
SCV flow	10 gpm 37.9 lpm
	17.2 gpm*Combined flow 65.1 lpm
	17.4 gpm*Optional dedicated flow with power shuttle 65.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at 24"/610mm)	3665 lbs 1662 kg
	4495 lbsOptOptional 2038 kg
Rear Arms	telescopic lower links

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1902
	1000@2000

Dimensions & Tires
Wheelbase	93 inches 236 cm
Weight	6211 to 8430 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	80
Cab Charging amps	120 OptOptional
Batteries	2
Battery CCA	590
Battery volts	12

References
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
4300 Series Tractors published in 2001, by Massey Ferguson
4300 Series Tractors published in 2002, by Massey Ferguson
MF 4300 Series Orchard Cab Tractors published in 2001, by Massey Ferguson

Engine

Engine Detail — 243.5 ci / 4.0 L Diesel

Manufacturer	Perkins 1004.40T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	243.5 ci 4.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Rated Power (net)	94 hp 70.1 kW
Power (gross)	100 hp 74.6 kW
Air cleaner	dual paper elements
Compression	17.3:1
Rated RPM	2200
Torque	297 lb-ft 402.7 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Coolant capacity	18.4 qts 17.4 L

Transmission

Transmission options
12-speed gear
12-speed power shuttle
24-speed power shuttle

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc

Transmission — 12 forward and reverse gear

Type	gear
Gears	12 forward and reverse
Clutch	dry disc

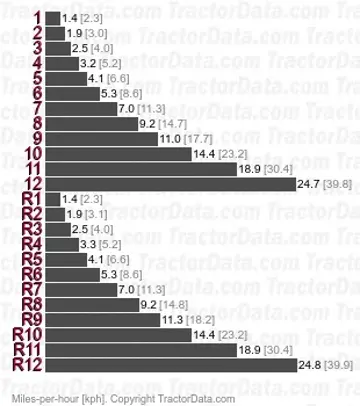

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc

Transmission — 24 forward and reverse power shuttle

Type	power shuttle
Gears	24 forward and reverse
Clutch	wet disc

Dimensions

Massey Ferguson 4355 Tires

Dimensions
Wheelbase	93 inches 236 cm
Length	163 inches 414 cm
Width	81 inches 205 cm
Ground clearance	14 inches 35 cm
2WD Front tread	57 to 77 inches 144 to 195 cm
4WD Front tread	55 to 75 inches 139 to 190 cm
Rear tread	56 to 84 inches 142 to 213 cm

Massey Ferguson 4355 Weight
2WD ROPS	6211 lbs 2817 kg
4WD ROPS	6546 lbs 2969 kg
2WD Cab	7735 lbs 3508 kg
4WD Cab	8287 lbs 3758 kg
Operating	8430 lbs 3823 kg

Massey Ferguson 4355 Height
Steering wheel	71 inches 180 cm
ROPS	103 inches 261 cm
Cab	100 inches 254 cm

Tests

OCED Tractor Test 1800
Diesel 12-speed 4WD June 1 - July 1, 1998 Link: OCED Tractor Test 1800 file
PTO performance
Max power	84.1 hp 62.7 kW
Fuel use	5.2 gal/hour 19.7 l/hour
Power at rated engine speed	82.2 hp 61.3 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated PTO speed	83.3 hp 62.1 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Drawbar performance
Max power	65.6 hp 48.9 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Gear 1M used for power test.
Max pull	9170 lbs 4159 kg
Gear 1L used for pull test.

Photos

Massey Ferguson 4355 with model 1070 front end loader.
