Massey Ferguson 5425

The Massey Ferguson 5425 is a tractor produced by Massey Ferguson. It is equipped with a 268 ci 4.4 L engine. The listed engine power is Diesel (gross): 80 hp / 59.7 kW. Transmission: Dyna-4. Operating weight: 9198 to 9848 pounds.

Engine Power

Diesel (gross): 80 hp / 59.7 kW

Fuel & Capacities

38 gal 143.8 L

Transmission

Dyna-4

Operating Weight

9198 to 9848 pounds

Overview

	2008 - 2013 5400 SeriesUtility tractor 5400 Series Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France
Original price	$38,042 (2009 ROPS 2WD )
	$56,602 (2009 Cab 4WD )
During official testing, the Massey 5425 optional open-center hydraulic pump was unable to produce 26 GPM, actual delivery was 24.1 GPM.

Massey Ferguson 5425 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	38 gal 143.8 L
	50 gal*Total capacity with optional 45 liter tank. 189.2 L
Engine details ...

Massey Ferguson 5425 Transmission
16-speed partial power shift
Transmission details ...

Massey Ferguson 5425 Power
Engine (gross)	80 hp 59.7 kW
PTO (claimed)	65 hp 48.5 kW
Drawbar (tested)	64.0 hp 47.7 kW
PTO (tested)	81.1 hp 60.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Valves	2 to 4
Pump flow	15 gpm 56.8 lpm
	26 gpm*Optional combined flow. 98.4 lpm

Tractor hitch
Rear Type	II
Control	electronic draft control
Rear lift (at 24"/610mm)	7817 lbs 3545 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	100.5 inches 255 cm
	97 inches (Hi-Vis) 246 cm
Weight	9198 to 9848 pounds
Front tire	9.5L-15
2WD Rear tire	420/85R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	80
Battery CCA	775
Battery volts	12

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled
Displacement	268 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier III
Power (gross)	80 hp 59.7 kW
Fuel system	direct injection
Air cleaner	dry
Compression	18.2:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

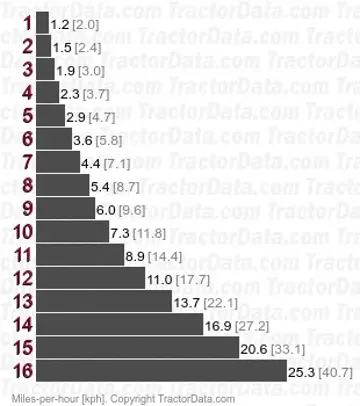

Transmission — Dyna-4

Transmission	Dyna-4
Type	partial power shift
Gears	16 forward and reverse
Clutch	wet disc
Four power shift gears in four ranges.

Dimensions

Massey Ferguson 5425 Tires
2WD Standard tires (ag)	Front: 9.5L-15. Rear: 420/85R30
4WD Standard tires (ag)	Front: 340/85R24. Rear: 420/85R34
2WD Optional tires (ag)	Front: 9.5L-15. Rear: 420/85R34
2WD Optional tires (ag)	Front: 9.5L-15. Rear: 460/85R30
2WD Optional tires (ag)	Front: 10.00-16. Rear: 420/85R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 460/85R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 460/85R30
2WD Optional tires (ag)	Front: 11.00-16. Rear: 460/85R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 380/80R38
2WD Optional tires (ag)	Front: 10.00-16. Rear: 420/85R38
2WD Optional tires (ag)	Front: 11.00-16. Rear: 420/85R38
2WD Optional tires (ag)	Front: 11.00-16. Rear: 460/85R38
4WD Optional tires (ag)	Front: 380/85R24. Rear: 460/85R34
4WD Optional tires (ag)	Front: 280/85R24. Rear: 420/85R30
4WD Optional tires (ag)	Front: 320/85R24. Rear: 460/85R30
4WD Optional tires (ag)	Front: 380/70R24. Rear: 480/70R34
4WD Optional tires (ag)	Front: 340/85R24. Rear: 380/80R38
4WD Optional tires (ag)	Front: 340/85R28. Rear: 420/85R38
4WD Optional tires (ag)	Front: 380/70R28. Rear: 480/70R38
4WD Optional tires (ag)	Front: 380/85R28. Rear: 460/85R38

Dimensions
Wheelbase	100.5 inches 255 cm
	97 inches (Hi-Vis) 246 cm
Length	165.7 inches 420 cm
Width	79.3 inches (min) 201 cm
	100.4 inches (max) 255 cm
Height (cab)	108.3 inches 275 cm
Shipping weight	9,198 lbs (2WD cab) 4172 kg
	9,848 lbs (4WD cab) 4467 kg

Tests

OCED Tractor Test 2532
Diesel 16-speed 4WD June 2009 - 2009, Link: OCED Tractor Test 2532 file
PTO performance
Max power	81.1 hp 60.5 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Power at rated engine speed	76.7 hp 57.2 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Power at rated PTO speed	81.1 hp 60.5 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Drawbar performance
Max power	64.0 hp 47.7 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Gear 3A used for power test.
Max pull	8,005 lbs 3631 kg
Gear 1D used for pull test.

Photos

Massey Ferguson 5425 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5425 based on its 80 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5425.

Estimated Continuous Field Runtime: 9.1 hrs

Approximately 9.1 hours of continuous field operation at ~75% rated power on a full tank (38 gal / 143.8 L).

Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
