Massey Ferguson 5435

The Massey Ferguson 5435 is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: Dyna-4. Operating weight: 8695 to 9335 pounds.

Engine Power

Diesel (listed): 75 hp / 55.9 kW

Fuel & Capacities

40 gal 151.4 L

Transmission

Dyna-4

Operating Weight

8695 lbs 3944 kg

Overview

	2004 - 2008 5400 SeriesUtility tractor 5400 Series Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Massey Ferguson 5435 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	40 gal 151.4 L
	53.2 gal (with optional tank) 201.4 L
Engine details ...

Massey Ferguson 5435 Transmission
16-speed
Transmission details ...

Massey Ferguson 5435 Power
Engine	75 hp 55.9 kW
Drawbar (claimed)	49 hp 36.5 kW
PTO (claimed)	60 hp 44.7 kW
Drawbar (tested)	48.5 hp 36.2 kW
PTO (tested)	61.7 hp 46.0 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
ROPS, cab optional

Hydraulics
Type	open center
	closed OptOptional
Pressure	2684 psi 185.1 bar
Valves	2 to 4
Total flow	15 gpm (open) 56.8 lpm
	34.8 gpm (combined flow) 131.7 lpm
	29 gpm (closed) 109.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000 OptOptional

Dimensions & Tires
Wheelbase	97 inches 246 cm
Weight	8695 to 9335 pounds
Front tire	7.50-16
Rear tire	18.4R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	80
Battery CCA	505
Battery volts	12

References

5400 Series published in 2006, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled vertical
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	75 hp 55.9 kW
Air cleaner	dual paper elements
Compression	19.3:1
Rated RPM	2200
Starter volts	12

Massey Ferguson 5435 Engine

Transmission

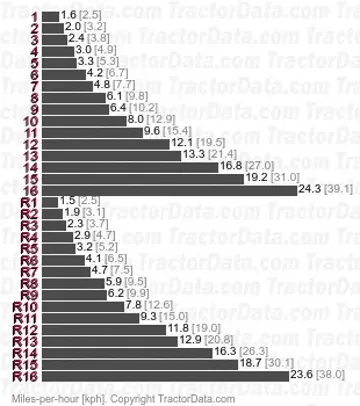

Transmission — Speedshift, mechnical powershift

Transmission	Speedshift, mechnical powershift
Gears	16 forward and reverse

Transmission — Dyna-4

Transmission	Dyna-4
Gears	16 forward and reverse

Dimensions

Massey Ferguson 5435 Tires
Ag front	7.50-16 (2WD)
	14.9R24 (4WD)
Ag rear	18.4R34

Dimensions
Wheelbase	97 inches 246 cm
Length	165.7 inches 420 cm
Width	79.3 inches 201 cm
Height	108.3 inches 275 cm
2WD Operating weight	8695 lbs 3944 kg
4WD Operating weight	9335 lbs 4234 kg

Tests

OCED Tractor Test 2275
Diesel 16-speed 4WD January 2005 - February 2005, Link: OCED Tractor Test 2275 file
PTO performance
Max power	61.7 hp 46.0 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Power at rated engine speed	61.0 hp 45.5 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Power at rated PTO speed	59.7 hp 44.5 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Drawbar performance
Max power	48.5 hp 36.2 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Gear 5 used for power test.

Attachments

Attachment overview
Massey Ferguson 1065 loader
Massey Ferguson 1070 loader

Photos

Massey Ferguson 5435 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5435 based on its 75 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5435.

Estimated Continuous Field Runtime: 10.3 hrs

Approximately 10.3 hours of continuous field operation at ~75% rated power on a full tank (40 gal / 151.4 L).

Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
