Massey Ferguson 7150
The Massey Ferguson 7150 is a tractor produced by Massey Ferguson. It is equipped with a 402.8 ci 6.6 L engine. The rated power output is 150 hp 111.9 kW. Transmission: 12 forward and 5 reverse. Operating weight: 18190 lbs 8250 kg.
Engine Power
150 hp
111.9 kW
Fuel & Capacities
111 gal
420.1 L
Transmission
12 forward and 5 reverse
Operating Weight
18190 lbs
8250 kg
Massey Ferguson 7150 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2009 - ????
7100 SeriesRow-Crop tractor |
|---|---|
2009 - ???? | |
7100 Series | |
Row-Crop tractor | |
2009 - ???? | |
|---|---|
7100 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Row-Crop tractor | |
Built in Canoas, Brazil | |
Massey Ferguson 7150 Engine | |
|---|---|
AGCO SISU Power 6.6L 6-cyl diesel | |
Fuel tank | 111 gal
420.1 L |
Engine details ...  | |
Massey Ferguson 7150 Transmission | |
|---|---|
12-speed synchromesh | |
Transmission details ...  |
Massey Ferguson 7150 Power | |
|---|---|
Engine | 150 hp
111.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Two-post ROPS with canopy. Cab available with air-conditioning. Auto Guide 3000 (optional); AGCOCOMMAND (optional) | |
Hydraulics | |
|---|---|
Type | load sensing |
Pressure | 2900 psi
200.0 bar |
Valves | 4 |
Pump flow | 36.46 gpm
138.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 10360 lbs
4699 kg |
12130 lbs (optional)
5502 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Engine RPM | 540@2143 |
1000@2160 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 120.9 inches
307 cm |
Front tire | 18.4-26 |
Rear tire | 24.5-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 120 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 170 |
Engine
| 2009 - ????
7100 SeriesRow-Crop tractor |
|---|---|
2009 - ???? | |
7100 Series | |
Row-Crop tractor | |
2009 - ???? | |
|---|---|
7100 Series | |
Row-Crop tractor |
Engine Detail — 402.8 ci / 6.6 L Diesel
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
AGCO SISU Power 620 DS | |
Displacement | 402.8 ci
6.6 L |
Power | 150 hp
111.9 kW |
Rated RPM | 2200 |
Torque | 442.5 lb-ft
600.0 Nm |
Torque RPM | 1400 |
Transmission
| 2009 - ????
7100 SeriesRow-Crop tractor |
|---|---|
2009 - ???? | |
7100 Series | |
Row-Crop tractor | |
2009 - ???? | |
|---|---|
7100 Series | |
Row-Crop tractor |

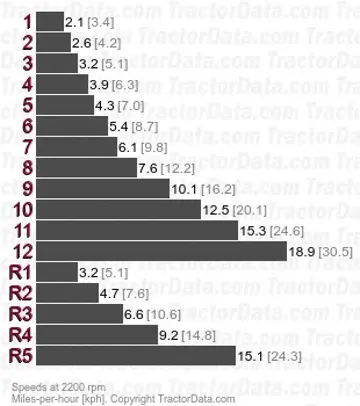

Transmission — 12 forward and 5 reverse synchromesh
Type | synchromesh |
Gears | 12 forward and 5 reverse |
With 24.5-32R1 rear tires. | |
 | |
Dimensions
| 2009 - ????
7100 SeriesRow-Crop tractor |
|---|---|
2009 - ???? | |
7100 Series | |
Row-Crop tractor | |
2009 - ???? | |
|---|---|
7100 Series | |
Row-Crop tractor |
Massey Ferguson 7150 Tires | |
|---|---|
Standard tires (ag) | Front: 18.4-26. Rear: 24.5-32 |
Optional tires (ag) | Front: 14.9-28. Rear: 23.1-30 |
Front: 14.9-28. Rear: 18.4-38 | |
Front: 18.4-26. Rear: 18.4-38 | |
Front: 16.9-28. Rear: 20.8-38 | |
Front: 540/65R28. Rear: 680/75R32 | |
Front: 600/60-30.5. Rear: 710/65-38 | |
Dimensions | |
|---|---|
Wheelbase | 120.9 inches
307 cm |
Length | 200 inches
508 cm |
Height | 123.6 inches
313 cm |
Cab Ballasted weight | 18190 lbs
8250 kg |
ROPS Ballasted weight | 17700 lbs
8028 kg |
