Massey Ferguson 5320

The Massey Ferguson 5320 is a tractor produced by Massey Ferguson. It is equipped with a 366 ci 6.0 L engine. The listed engine power is Diesel (listed): 120 hp / 89.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 9085 lbs 4120 kg.

Engine Power

Diesel (listed): 120 hp / 89.5 kW

Fuel & Capacities

33 gal 124.9 L

Transmission

12 forward and 4 reverse

Operating Weight

9085 lbs 4120 kg

Overview

	2002 - 2009 5000 SeriesUtility tractor 5000 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Canoas, Brazil

Massey Ferguson 5320 Engine
Perkins 6.0L 6-cyl diesel
Engine details ...

Massey Ferguson 5320 Transmission
12-speed
Transmission details ...

Massey Ferguson 5320 Power
Engine	120 hp 89.5 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic rear
Power steering
Wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
Fuel	33 gal 124.9 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Capacity	13.2 gal 50.0 L
Total flow	14.5 gpm 54.9 lpm
	17.4 gpm*With 540/1000 PTO. 65.9 lpm

Tractor hitch
Rear Type	II
Rear lift	6614 lbs 3000 kg
	8818 lbsOptOptional 3999 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	540/1000 (1.375)
Engine RPM	540@1900
	1000@2000

Dimensions & Tires
Wheelbase	102.8 inches 261 cm
Weight	9085 lbs 4120 kg
Front tire	14.9-26
Rear tire	23.1-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70
Batteries	2
Battery volts	12
Battery AH	70

Engine

Engine Detail — 366 ci / 6.0 L Diesel

Manufacturer	Perkins 1006
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	366 ci 6.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Power	120 hp 89.5 kW
Air cleaner	dual element dry
Rated RPM	2200
Torque	325.5 lb-ft 441.4 Nm
Torque RPM	1420
Starter	electric
Starter volts	12
Oil capacity	14.3 qts 13.5 L

Transmission

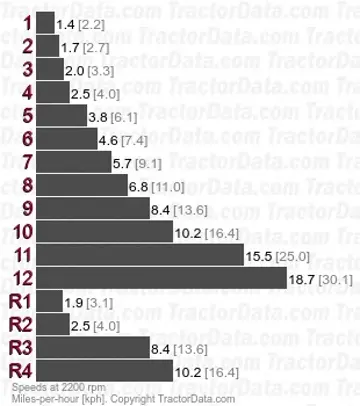

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	330mm disc
With 18.4-34 rear tires.

Dimensions

Massey Ferguson 5320 Tires
Standard tires (ag)	Front: 14.9-26. Rear: 23.1-30
	Front: 14.9-26. Rear: 18.4-38
	Front: 14.9-24. Rear: 18.4-34
	Front: 14.9-24. Rear: 23.1-26
	Front: 14.9-28. Rear: 23.1-30

Dimensions
Wheelbase	102.8 inches 261 cm
Length	170.1 inches 432 cm
Width	82.7 inches 210 cm
Height	110 inches 279 cm
Weight	9085 lbs 4120 kg
Ballasted weight	12699 lbs 5760 kg
Ground clearance	17.4 inches 44 cm

Photos

Massey Ferguson 5320 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5320 based on its 120 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5320.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (33 gal / 124.9 L).

Estimated 75% Load Fuel Burn~6.2 gal/hr (23.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
