Massey Ferguson 9240

The Massey Ferguson 9240 is a tractor produced by Massey Ferguson. It is equipped with a 505 ci 8.3 L engine. The listed engine power is 209.55 hp 156.3 kW. Transmission: 18 forward and 9 reverse. Operating weight: 19,872 lbs 9013 kg.

Engine Power

209.55 hp 156.3 kW

Fuel & Capacities

13.0 gal/hour 49.2 l/hour

Transmission

18 forward and 9 reverse

Operating Weight

19,872 lbs 9013 kg

Overview

	1995 - 1998 Farm/Agricultural tractor

Production
Manufacturer	Massey Ferguson
Farm/Agricultural tractor

Massey Ferguson 9240 Engine
CDC-Cummins 8.3L 6-cyl diesel
Engine details ...

Massey Ferguson 9240 Transmission
18-speed full powershift
Transmission details ...

Massey Ferguson 9240 Power
Drawbar (tested)	175.52 hp 130.9 kW
PTO (tested)	226.31 hp 168.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	115 inches 292 cm
Weight	19,872 lbs 9013 kg
Full dimensions and tires ...

Engine

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer	CDC-Cummins
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	505 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2200
Starter volts	12

Transmission

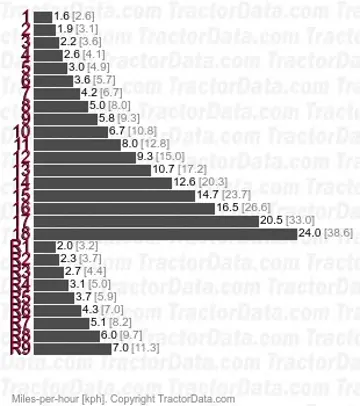

Transmission — 18 forward and 9 reverse full powershift

Type	full powershift
Gears	18 forward and 9 reverse

Dimensions

Massey Ferguson 9240 Tires

Dimensions
Wheelbase	115 inches 292 cm
Operating weight	19,872 lbs 9013 kg
Ballasted weight	22,580 lbs 10242 kg

Tests

OCED Tractor Test 1696
Diesel 18-speed 4WD June 8 - 16, 1995 Link: OCED Tractor Test 1696 file
PTO performance
Max power	226.31 hp 168.8 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Power at rated engine speed	209.55 hp 156.3 kW
Fuel use	12.2 gal/hour 46.2 l/hour
Power at rated PTO speed	219.14 hp 163.4 kW
Fuel use	12.3 gal/hour 46.6 l/hour
Drawbar performance
Max power	175.52 hp 130.9 kW
Fuel use	13.0 gal/hour 49.2 l/hour
Gear 8 used for power test.

Photos

Massey Ferguson 9240 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 9240 based on its 209.55 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 9240.

Estimated Continuous Field Runtime: 1.2 hrs

Approximately 1.2 hours of continuous field operation at ~75% rated power on a full tank (13 gal / 49.2 L).

Estimated 75% Load Fuel Burn~10.9 gal/hr (41.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
